Trusted by Over 1000 Customers All Over the World
Blacken Coating Eye Foundation Bolts
Blacken coating can increase the corrosion resistance of eye foundation bolts,enhancing the stability and safety of the building and equipment.Non-standard sizes, grades and finishes are available to order as special. Bespoke components manufactured to specification and drawings can also be supplied. Minimum order quantities apply.
Material: Carbon Steel
Surface: Blacken
Size: From M12 to M100, custom size available
Standard: ASTM A307, A325, A354, F1554
Brand: Unbranded/Generic
Application: Construction,Bridge,Equipment.
Blacken Coating Eye Foundation Bolts Description
Specifications:
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | Carbon Steel Q235B,G345B |
| Surface finish | As finished,Blacken,Galvanized |
| Sizes | From M8 to M72, Custom Size available |
| Strength Grade | 4.8, 6.8, 8.8, 10.9, 12.9 |
| HS Code | 7318159090 |
Eye Foundation Bolts Features:
Eye foundation bolts are a type of anchor bolts characterized by a loop (eye) at one end. They are designed to anchor structures to concrete foundations. Foundation Bolts are generally made of Q235B carbon steel for size range from M10 to M36.For size larger and thicker foundation bolts which have more high requirement, Q345B (16 manganese) carbon steel can be used.It has more greater harness and strength, although it is more expensive than Q235B. Eye bolts come in various lengths, diameters, and loop sizes to suit different applications. The specific size,strength and surface finishing will depend on the load requirements and environmental conditions. All sizes are avialable in eye foundation bolts.Foundation Bolts Types:
| d | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72 | |
| p | pitch | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 |
| b | tolerance | 31 | 36 | 40 | 50 | 58 | 68 | 80 | 94 | 106 | 120 | 140 | 160 | 180 |
| L1 | 32 | 40 | 48 | 64 | 80 | 96 | 120 | 144 | 168 | 192 | 224 | 256 | 288 | |
| R | 16 | 20 | 24 | 32 | 40 | 48 | 60 | 72 | 84 | 96 | 112 | 128 | 144 | |
| X | MAX | 3.2 | 3.8 | 4.3 | 5 | 6.3 | 7.5 | 9 | 10 | 11 | 12.5 | 14 | 15 | 15 |
| Size not listed? Please enquire – we manufacture special bolts as per your drawing. | ||||||||||||||
Shipping and Payment Term:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
Related Products
-

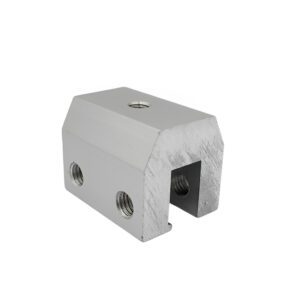

Solar Clamp for Tin Roof Mounting
Read moreSolar Clamp for Tin Roof Mounting is a specialized component used to secure solar panel mounting systems to tin or metal roofs. These clamps are a non-penetrating solution designed to attach solar panels or other rooftop equipment to the metal roofing without causing damage to the roof itself. They offer a secure, durable, and weatherproof attachment method that avoids the need for drilling or other forms of roof penetration.Our team works closely with clients to design and produce Solar Clamps and solar panel mounting according to unique project requirements, ensuring optimal performance and ease of installation.
Materials:Stainless steel 304&aluminum 6005-T5
Specification:As per project requirements
Installation Site:Outdoor Wind resistance:60m/s
Snow Load:14KN/m2
Deprecated: preg_replace(): Passing null to parameter #3 ($subject) of type array|string is deprecated in /home/u101520528/domains/fastenmetal.com/public_html/wp-includes/kses.php on line 1807
-

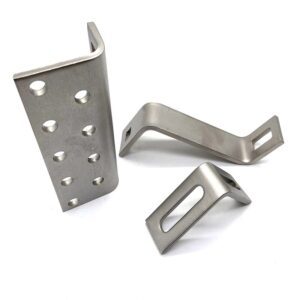

Roof Hook for Solar Roof Tile Bracket
Read moreSolar roof hook is a comprehensive line of installtion solutions designed specifically for tile roofs, offering unmatched performance through innovation and precision engineering.Our team works closely with clients to design and produce roof tile hooks and brackets tailored to unique project requirements, ensuring optimal performance and ease of installation.
Materials:SS201 304 316 310 310S
Specification:As per project requirements
Installation Site:Outdoor Wind resistance:60m/s
Snow Load:14KN/m2
Deprecated: preg_replace(): Passing null to parameter #3 ($subject) of type array|string is deprecated in /home/u101520528/domains/fastenmetal.com/public_html/wp-includes/kses.php on line 1807
-

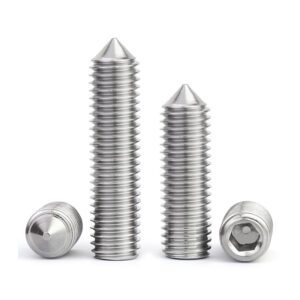

Stainless Steel Socket Set Screws
