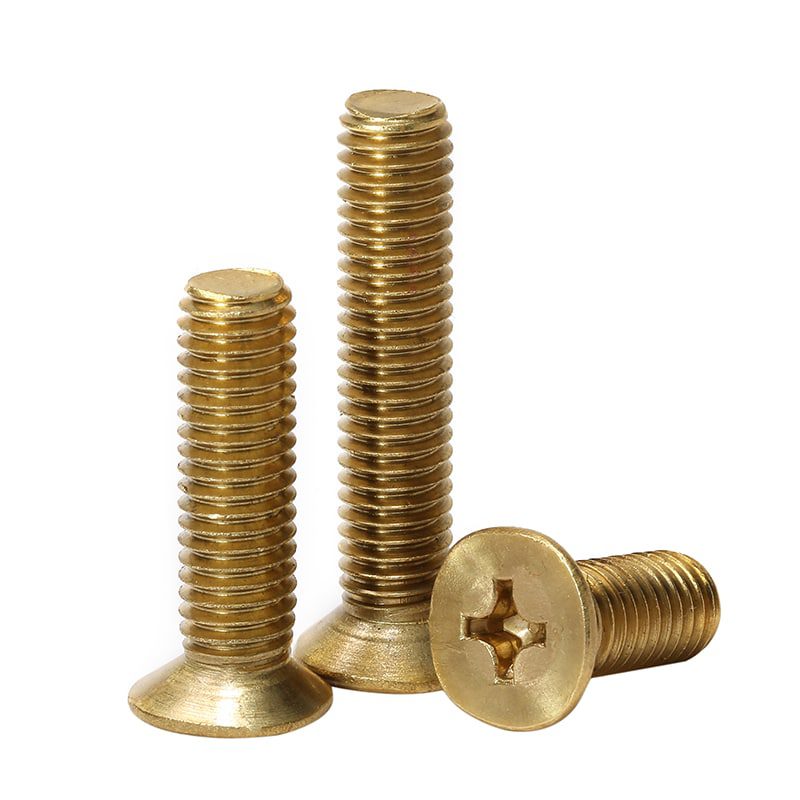

Brass Countersunk Bolts is a special type of screw with a flat, countersunk, or semi-countersunk head. It has a sloped edge around the side of the screw head, allowing it to lock tightly onto a nut or other object.leaving the surface smooth.They are commonly used when a flush finish is needed, so the bolt head doesn’t protrude from the surface.For quotes,inquiries,or made to order request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:DIN 7991
Finish: As finished
Size:M3-M20
Strength Grade:Grade4.8,6.8
Brass countersunk bolts are fasteners with flat heads that sit flush with the surface of the material when fully installed. They are commonly used in woodworking, metalworking, and marine applications due to brass’s corrosion resistance and conductivity .To use Brass Countersunk Bolts, you should first drill a hole in the material to be fastened that fits the screw. This prevents the screw from bending or getting damaged, and it saves time and effort when tightening. Then, use screwdriver to turn the screw in, making sure to keep the turning and pressure steady. Be careful not to let the screwdriver angle shift while driving the screw in, as this can easily damage the screw, cause it to spin endlessly, or even break.
We Manufacture Countersunk Bolts& screws in stainless steel 304,316 and brass as standard, with other materials and finishes available on request including Aluminium and Titanium.Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.
| diameter(d) | thread distance(P) | dk | k(head thickness) | |
| max | min | |||
| M2 | 0.4 | 4 | 3.7 | 1.2 |
| M2.5 | 0.45 | 5 | 4.4 | 1.4 |
| M3 | 0.5 | 6 | 5.7 | 1.7 |
| M4 | 0.7 | 7.5 | 7.14 | 2 |
| M5 | 0.8 | 9 | 8.6 | 2.5 |
| M6 | 1 | 11 | 10.57 | 3 |
| M8 | 1.25 | 15 | 13.9 | 4 |
| M10 | 1.5 | 18 | 17.5 | 4.8 |
| M12 | 1.75 | 19.5 | 19 | 5.8 |
| Not listed in the size chart? Please inqury us | ||||
FastenMetal offers a comprehensive custom metal components service, include to bespoke screws, bolts, nuts, sheet metal stamping tailored to specific requirements. Our custom service supports a wide range of materials, finishes, sizes, making it ideal for specialized industrial applications. We also provides expert advice on design and material selection, ensuring that each custom fasteners and metal components meets both functional and aesthetic needs. With fast turnaround times and high-quality standards, Fastenmetal’s custom service is suited for clients looking for unique or hard-to-find fastening solutions.
Brass self tapping screws are a type of wood screw with a drill-like pointed tip, coarse threads. Made of brass, they offer a decorative finish and are ideal for woodworking projects where both strength and appearance matter. Commonly used for furniture assembly and cabinetry, they provide a reliable hold without requiring a pilot hole in softer woods.For quotes,inquiries,or bespoke request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:DIN916
Finish: As finished
Size:M3-M6
Strength Grade:Grade4.8,6.8
Brass grub screws are small, headless screws made from brass, used for fastening without protruding from the surface. Due to their corrosion resistance, non-magnetic properties, and good conductivity, they’re ideal for applications in electronics, plumbing, and other precision work where a secure, flush fit is needed.For quotes,inquiries,or bespoke request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:DIN916
Finish: As finished
Size:M3-M6
Strength Grade:Grade4.8,6.8
Self-drilling brass set screws are small, sturdy fasteners made from brass that can drill their own hole as they’re screwed in, eliminating the need for pre-drilling. These screws are often used to secure components without protruding from the surface and are resistant to rust and corrosion, making them ideal for applications in plumbing, electrical, and marine projects.For quotes,inquiries,or bespoke request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:DIN916
Finish: As finished
Size:M3-M6
Strength Grade:Grade4.8,6.8
