Double U Bolt Clamp DIN3570

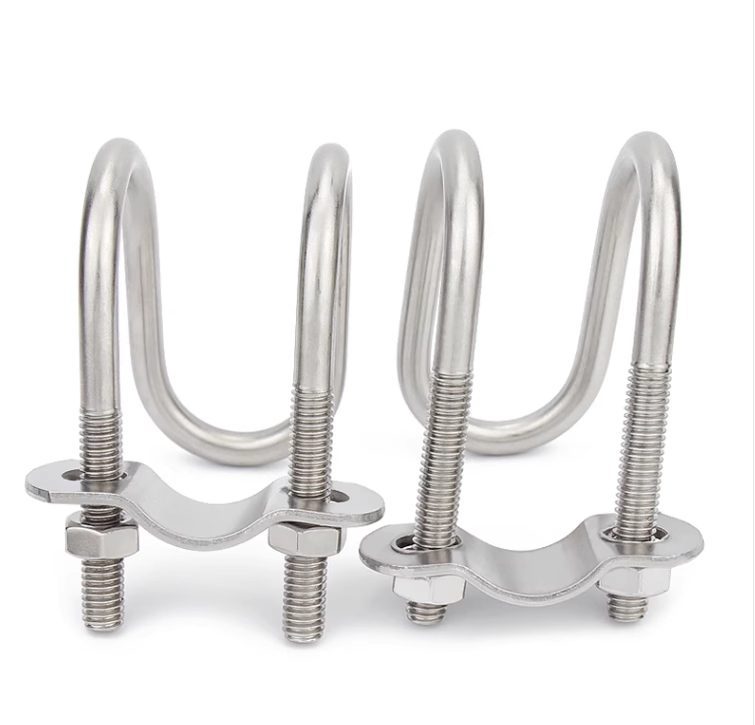

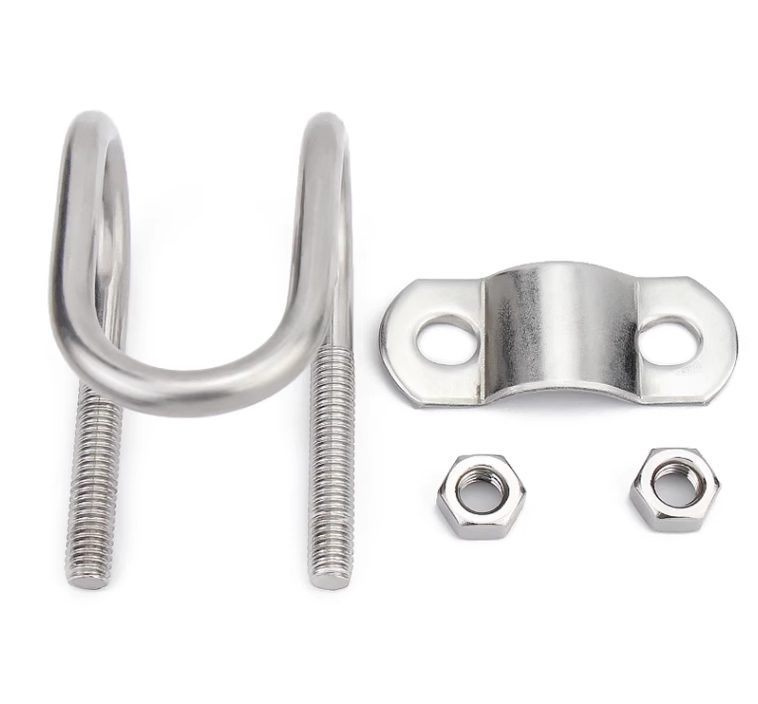

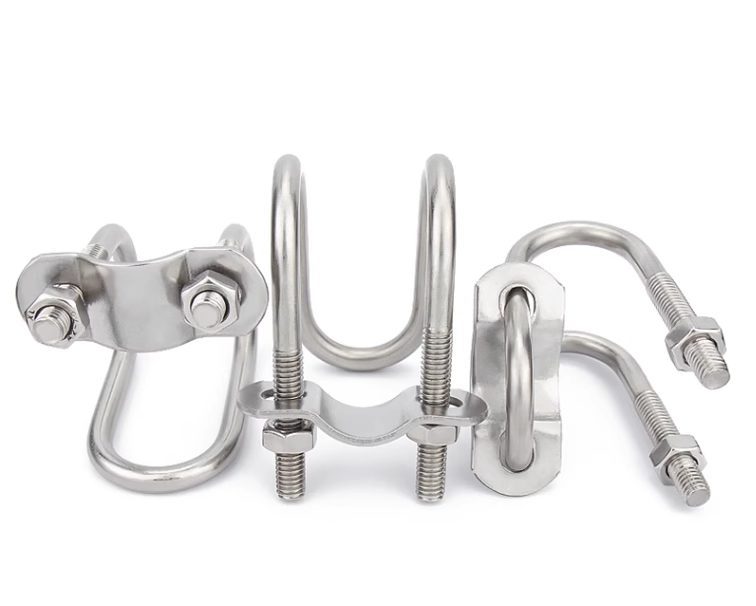

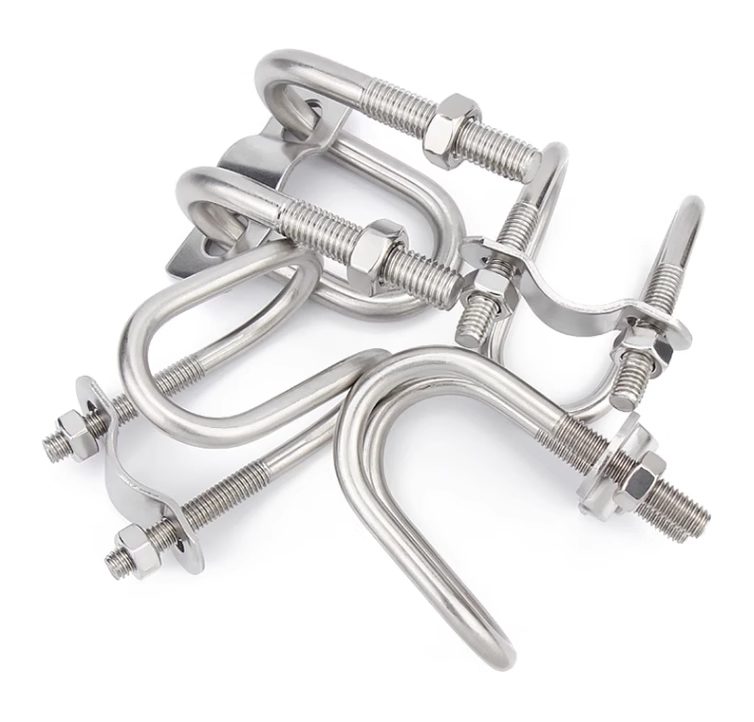

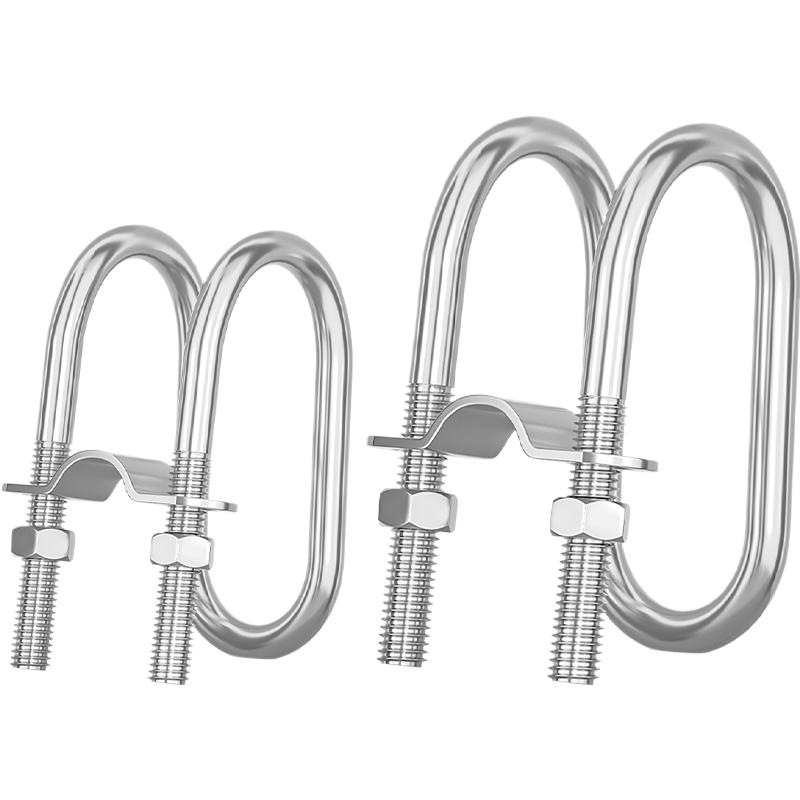

Double U-Bolt Clamp is commonly used to secure two intersecting pipes. It consists of two U-shaped bolts and a flat metal plate that together provide strong grip and stability. These clamps are commonly used in industries like construction, transportation, and telecommunications for holding cross cylindrical objects tightly in place. Available from FastenMetal in sizes from M6 to M8 as standard. Non-standard sizes, materials are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.

Material: Stainless Steel, Carbon Steel

Grade:12.8,10.8,6.8,8.8

Standard:DIN3570

Size:M6-M8(Other sizes, please inquiry us)

Double U Bolt Clamp DIN3570 Description

Double U-Bolt Clamp is a kind of U bolts typically used to securely fix two intersecting pipes or poles. It features two U-shaped bolts and a plate, ensuring a firm and stable connection.

At FastenMetal, we specialize in delivering high-quality, tailor-made bolts to meet unique project needs. Our team works closely with clients to design and manufacture bolts that meet precise dimensions, materials, and performance criteria. Whether it’s for high-stress environments, specialized machinery, or unique architectural designs, our custom bolts ensure reliability and functionality where standard solutions fall short.

With a commitment to precision engineering and robust quality control, FastenMetal provides bolts that are durable, efficient, and tailored to your specific application. From prototypes to large-scale production, we are your trusted partner for custom fastening solutions.

Technical Data & Availability

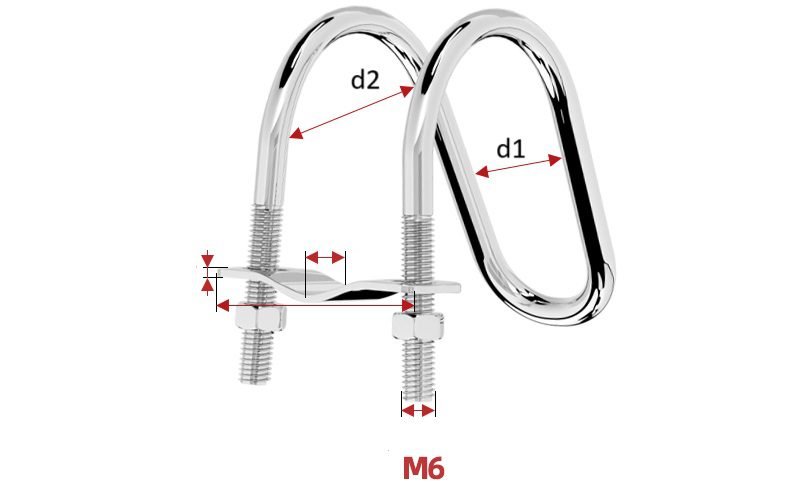

Double U Bolt Clamp Drawing

Unit:mm
Specification d d1 d2
M6*20*20 6 20 20
M6*20*25 6 20 25
M6*20*32 6 20 32
M6*25*20 6 25 20
M6*25*25 6 25 25
M6*25*32 6 25 32
M6*32*20 6 32 20
M6*32*25 6 32 25
M6*32*32 6 32 32
M6*33*60 6 33 60
M6*33*76 6 33 76
M6*63*20 6 63 20
M6*63*25 6 63 25
M6*63*32 6 63 32
M8*20*20 8 20 20
M8*20*25 8 20 25
M8*20*32 8 20 32
M8*20*60 8 20 60
M8*20*76 8 20 76
M8*25*20 8 25 20
M8*25*25 8 25 25
M8*25*32 8 25 32
M8*25*60 8 25 60
M8*50*21 8 50 21
M8*50*27 8 50 27
M8*50*33 8 50 33
Size not listed? Please inquiry us!

Shipping and Payment Terms:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you
