Foundation Bolts

Anchor foundation bolts are very important components used in construction to secure structures to their foundations. The materials used for manufacturing these bolts need to provide high strength, durability, and resistance to environmental factors.

Foundation Bolts are generally made of Q235B carbon steel for size range from M10 to M36.For size larger and thicker foundation bolts which have more high strength requirement, Q345B (16 manganese) carbon steel will be needed.For some special environments such as chemical and industrial facilities, material’s corrosion resistance are essential. Stainless steel foundation bolts are chosen for applications where longevity, minimal maintenance, and resistance to harsh environmental conditions are crucial.

Anchor Foundation Bolts comes in various types, each designed for specific applications and conditions. The main types include:

L-Shaped Anchor Bolts: Feature an L-shape for better anchoring and resistance to pull-out forces.

J-Bolts: Shaped like the letter "J" to provide strong anchorage within concrete.

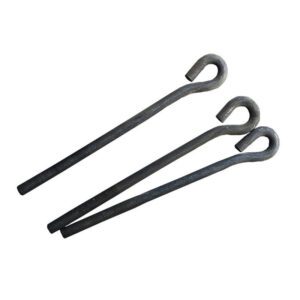

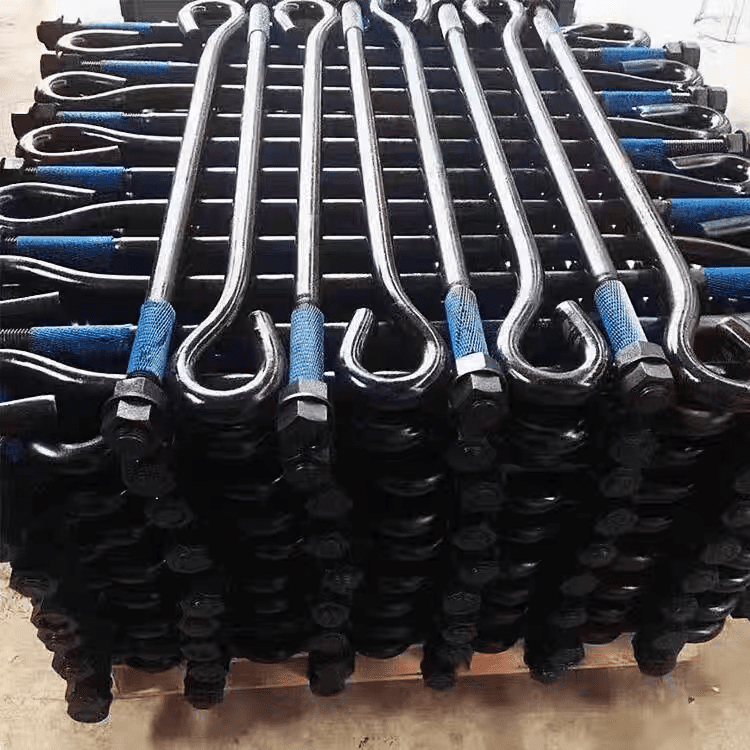

Eye Foundation Bolts: Have a circular eye at one end and are used for lifting or securing cables and ropes.

U shape foundation bolts: U-bolts are commonly used in pipe installations as fasteners to secure pipes.

Straight Anchor Bolts: Simple, straight bolts with threads embedded into concrete.

Stiffner Type Foundation Bolt: This type of welded plate foundation bolt is used for large-span steel structures and power transmission towers, consisting of a base plate and four gusset plates welded to a single-headed bolt.

Weld Claws Foundation Bolts: this is a type of foundation bolt welded with several extended claws on one end.

For foundation bolts that are unavailable as standard products, or for very specific requirements, we can manufacture custom  foundation bolts exactly to your specifications or drawings.

Foundation bolts can be finished with various coatings to enhance their performance, durability, and resistance to environmental factors. Here are some common finishes for foundation bolts:

As finished: No additional coating. Used in environments where corrosion is not important or when the bolt will be encased in concrete.

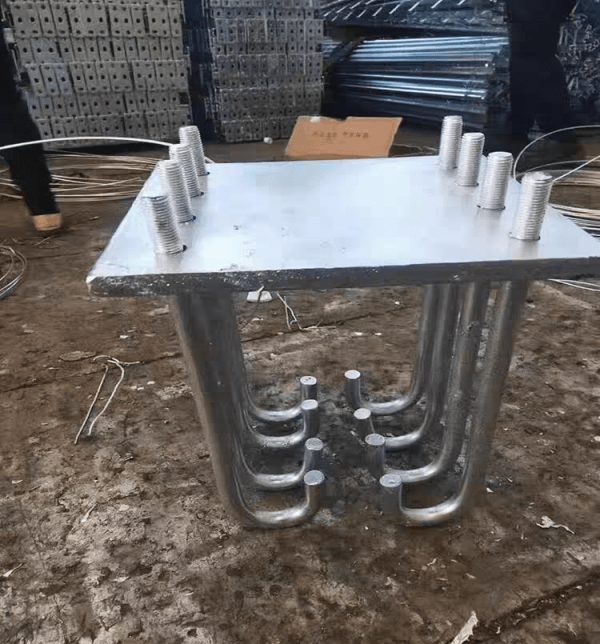

Hot-dip Galvanizing: A thick layer of zinc coating is applied by immersing the bolt in molten zinc. Provides excellent corrosion resistance, especially in outdoor and marine environments.

Blackening: Adding a layer of oxide film on the surface of anchor bolts to isolate air and prevent subsequent rusting. This method is relatively low-cost, but it requires maintenance; otherwise, the oxide film can easily fall off, leading to rusting.

Rust prevention Cover:

Installing a layer of protective armor on the outside of the foundation bolt to prevent direct contact with external environment, in order to extending its service life. Typically use this method together with blackening finishes. The way can decrease more cost.

Foundation bolts are used in a variety of applications across different industries to secure structures to their foundations. Here are some common uses:

1. Construction:
   • Securing structural steel columns, beams, and plates to concrete foundations.
   • Anchoring building frames and walls to foundations.
   • Supporting heavy machinery and equipment.
2. Infrastructure:
   • Fixing bridges, tunnels, and dams to their foundations.
   • Anchoring light poles, signposts, and guardrails.
   • Securing towers, such as communication and transmission towers.
3. Industrial Facilities:
   • Attaching industrial machinery and heavy equipment to concrete bases.
   • Fixing conveyor systems and large storage tanks.
   • Anchoring cranes and other heavy lifting equipment.
4. Energy Sector:
   • Securing wind turbine towers to their bases.
   • Anchoring solar panel arrays and frames.
   • Fixing power generation equipment and transformers.
5. Marine and Coastal Structures:
   • Securing docks, piers, and offshore platforms.
   • Anchoring seawalls and retaining structures.
6. Transportation:
   • Fixing rail tracks to concrete sleepers.
   • Anchoring airport runway lighting and signage.
7. Residential and Commercial Buildings:
   • Securing foundations for homes and commercial buildings.
   • Anchoring retaining walls and fencing.
8. Public Infrastructure:
   • Securing public facilities like stadiums, parks, and recreational areas.
   • Anchoring statues, monuments, and public art installations.
