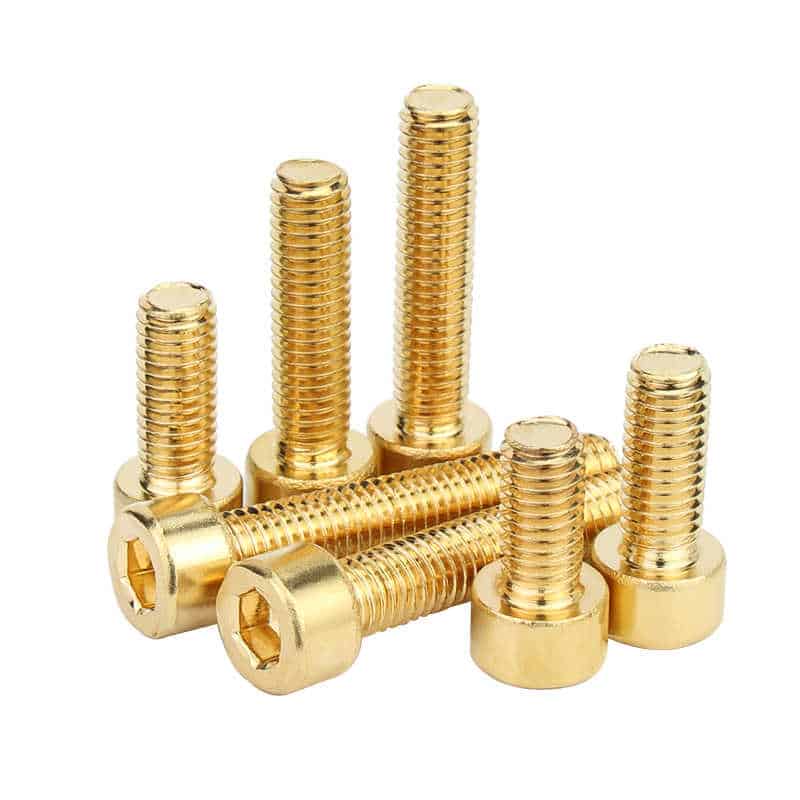

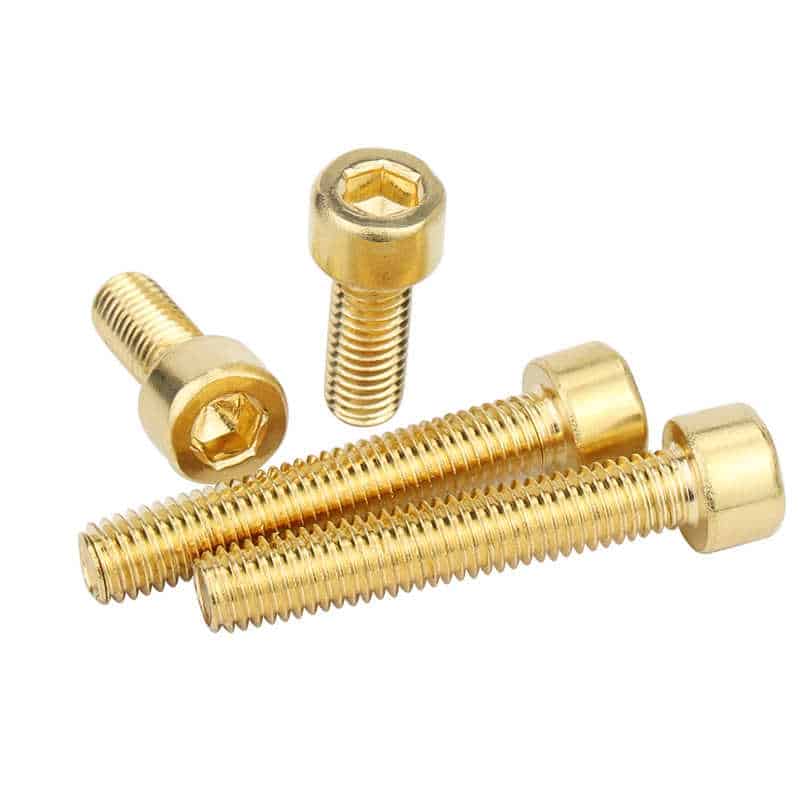

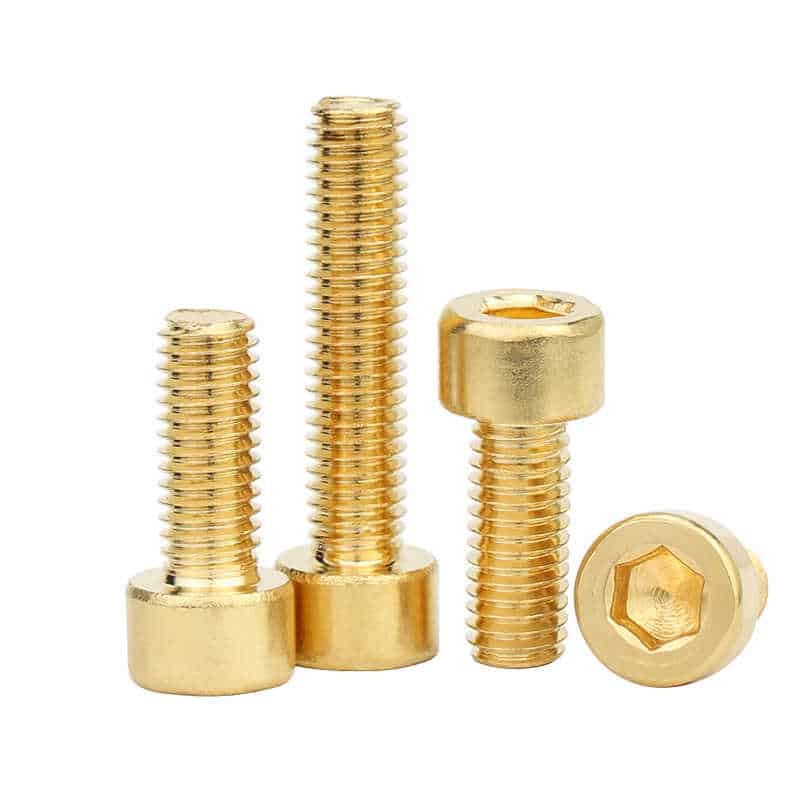

Hex Socket Cap Head Brass Screws
Hex socket cap head brass screws are fasteners made of brass with a cylindrical head and a hexagonal socket. The head is designed to be tightened or loosened with a hex key (Allen wrench). Brass material provides good corrosion resistance, electrical conductivity, and a golden appearance, making these screws ideal for applications in electronics, plumbing, and decorative projects. The cap head design offers a clean and strong hold.For quotes,inquiries,or made to order request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:DIN 7991
Finish: As finished
Size:M3-M20
Strength Grade:Grade4.8,6.8
Hex Socket Cap Head Brass Screws Description
Hex Socket Countersunk Brass Screws are specialized fasteners featuring a flat head with a hexagonal socket in the center. The “countersunk” design means that the screw head sits flush with or below the surface of the material once installed, providing a smooth finish. The hex socket allows these screws to be tightened or loosened using a hex key or Allen wrench.Hex socket cap head brass screws are used in applications where strength, corrosion resistance, and appearance are important. They are commonly used in Electronics,Plumbing,Decorative Fixtures,Marine Applications and so on.
Our non-standard brass products display(We accept make brass products from your drawings,please inqury us)

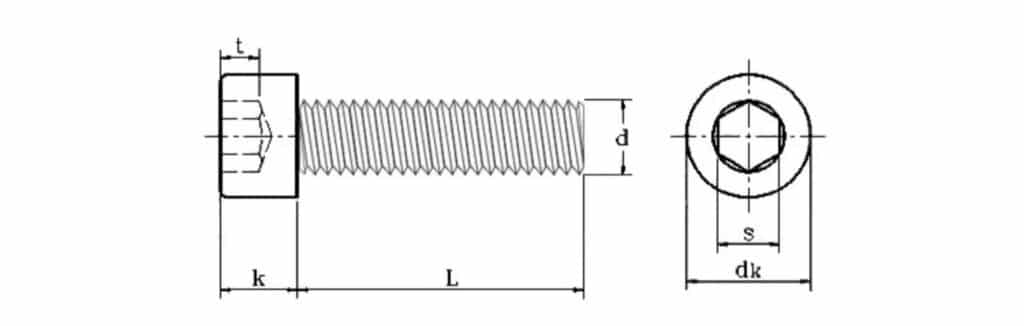

Hex Socket Cap Head Brass Screws Size Chart
| thread diameter | thread distance(P) | dk | k | s | t | |||
| d | max | min | max | min | max | min | min | |
| M3 | 0.5 | 5.68 | 5.32 | 3 | 2.86 | 2.58 | 2.52 | 1.3 |
| M4 | 0.7 | 7.22 | 6.78 | 4 | 3.82 | 3.08 | 3.02 | 2 |
| M5 | 0.8 | 8.72 | 8.28 | 5 | 4.82 | 4.095 | 4.02 | 2.5 |
| M6 | 1 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 | 3 |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 4 |
| M10 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.175 | 8.025 | 5 |
| M12 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.025 | 6 |
| M14 | 2 | 21.33 | 20.67 | 14 | 12.57 | 12.21 | 12.032 | 7 |
| M16 | 2 | 24.33 | 23.67 | 16 | 15.57 | 14.21 | 14.032 | 8 |
| M20 | 2.5 | 30.33 | 29.67 | 20 | 19.48 | 17.23 | 17.05 | 10 |
| Size no listed? Please inquiry us | ||||||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
