Trusted by Over 1000 Customers All Over the World

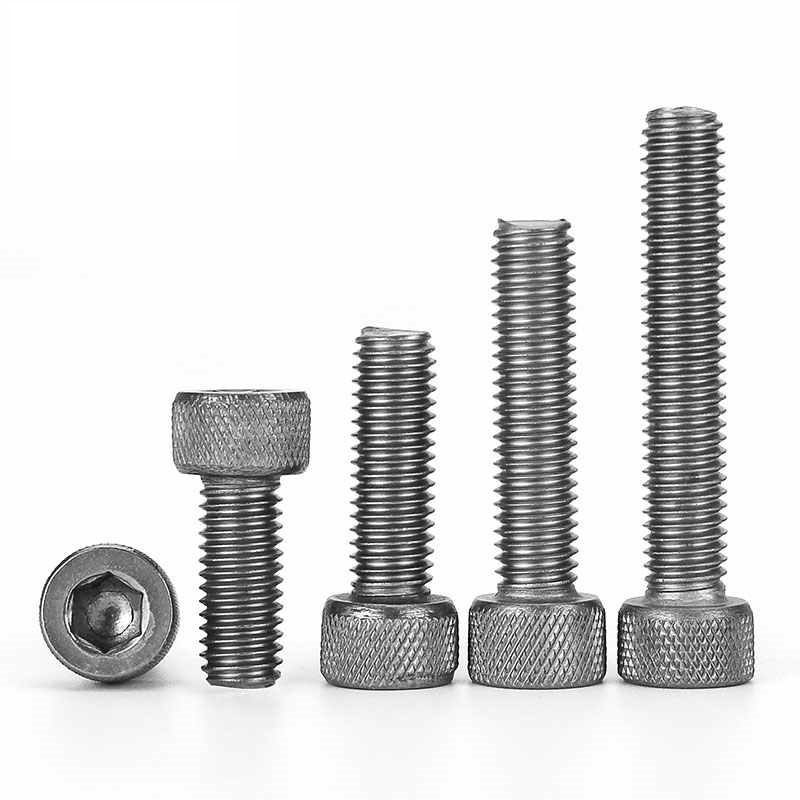

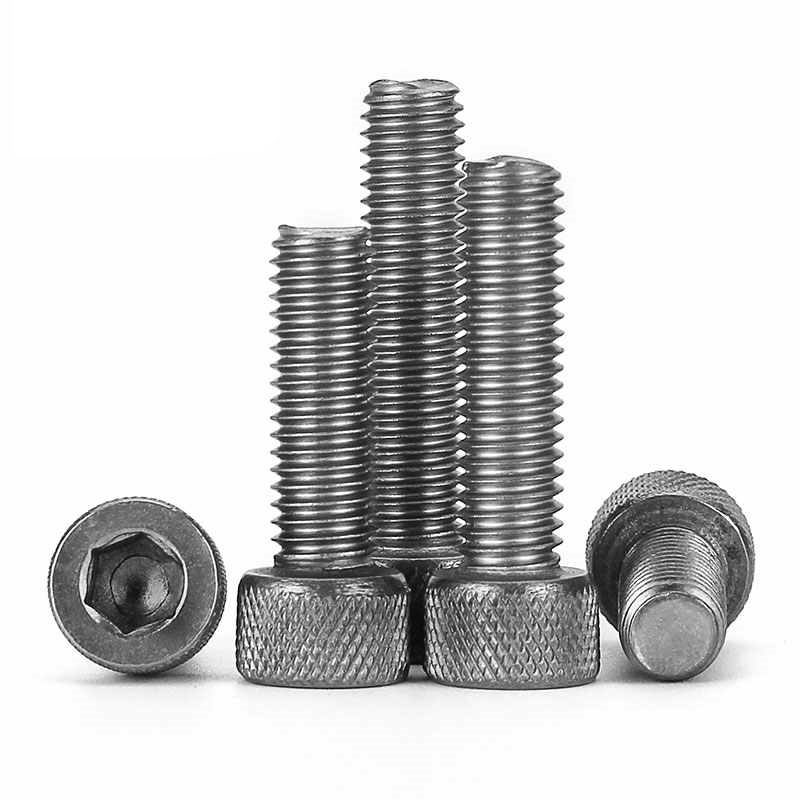

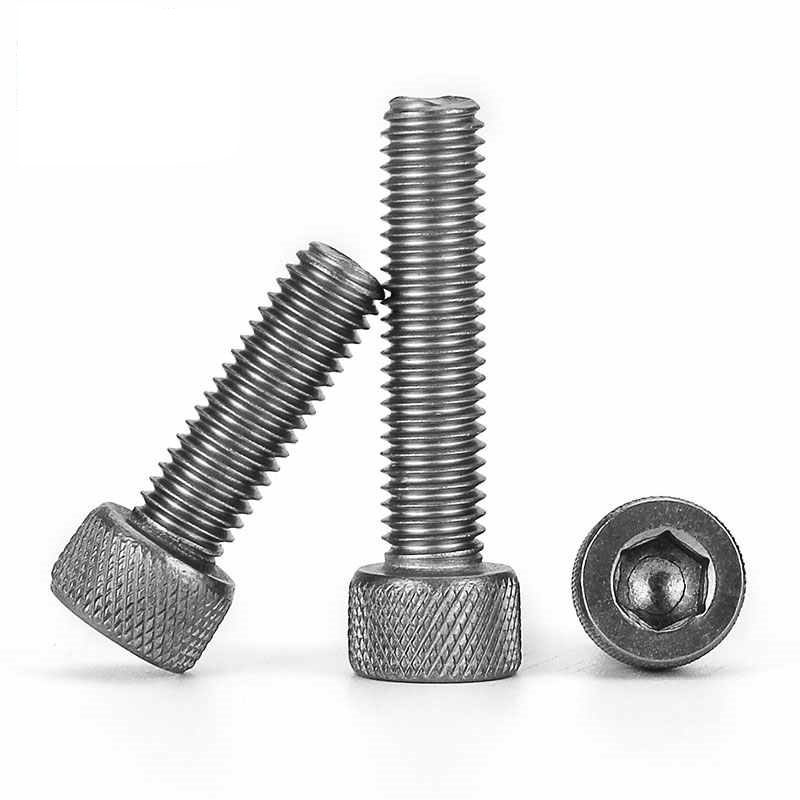

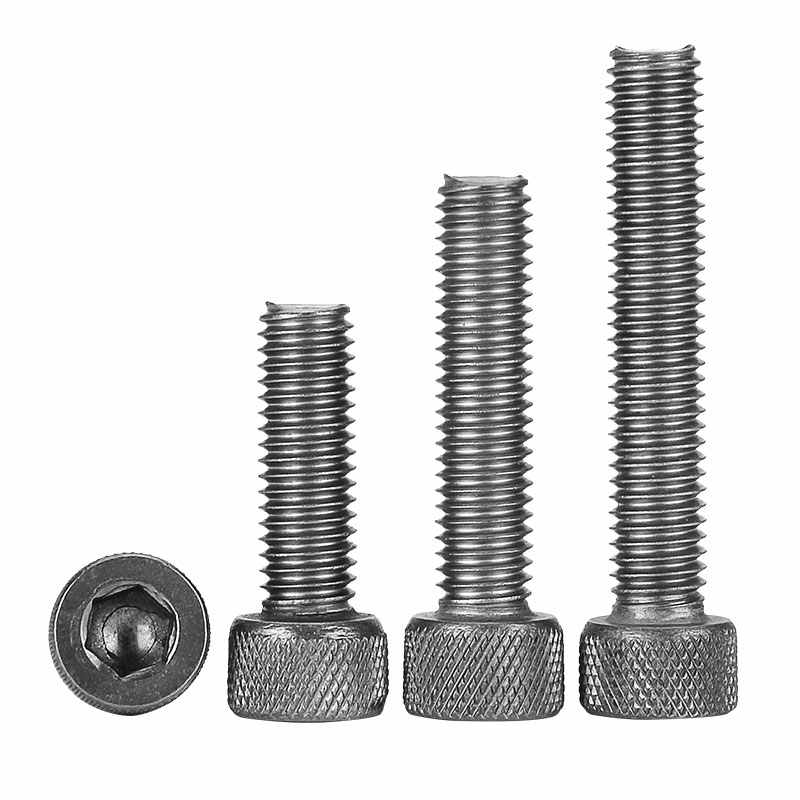

Knurled Socket Countersunk Titanium Screws
Material: TA2 Titanium
Grade:12.8
Standard:DIN912
Size:M5-M16(Other sizes, please inquiry us)
Knurled Socket Countersunk Titanium Screws Description
Knurled socket countersunk titanium screws are widely used in industries where reliability and performance are critical such as aerospace,automotive,medical Devices and so on. Knurled socket countersunk titanium screws combine functionality, durability, and precision, making them an excellent choice for both practical and decorative uses in various high-end applications.
We pride ourselves on offering a comprehensive range of titanium products such titanium hex bolts,Countersunk screws,titanium threaded rods, titanium nuts and other Non-standard titanium parts. Materials and finishes available include titanium TA1,TA2,TA3,TA9,GR1,GR2,TC4,GR5. At FastenMetal LTD , we are dedicated to providing top-quality titanium fasteners and custom parts that drive innovation and reliability in your projects. Let us be your trusted partner for all your titanium product needs.

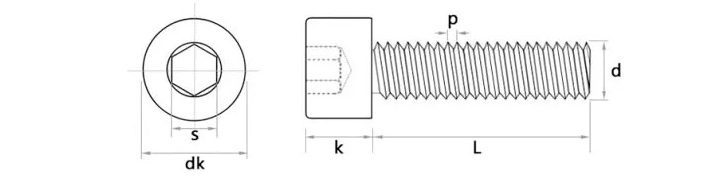

Technical Data & Availability
| Specification(d) | Pitches | dk | k | s | |||
| max | min | max | min | max | min | ||
| M1.4 | 0.3 | 2.74 | 2.46 | 1.4 | 1.26 | 1.36 | 1.32 |
| M1.6 | 0.35 | 3.14 | 2.86 | 1.6 | 1.46 | 1.56 | 1.52 |
| M2 | 0.4 | 3.98 | 3.62 | 2.0 | 1.86 | 1.56 | 1.52 |
| M2.5 | 0.45 | 4.68 | 4.32 | 2.5 | 2.36 | 2.06 | 2.0 |
| M3 | 0.5 | 5.68 | 5.32 | 3.0 | 2.86 | 2.58 | 2.52 |
| M4 | 0.7 | 7.22 | 6.78 | 4.0 | 3.82 | 3.08 | 3.0 |
| M5 | 0.8 | 8.72 | 8.28 | 5.0 | 4.82 | 4.10 | 4.0 |
| M6 | 1 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 |
| M10 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.2 | 8.03 |
| M12 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.03 |
| M14 | 2 | 21.33 | 20.67 | 14 | 12.57 | 12.21 | 12.03 |
| M16 | 2 | 24.33 | 23.67 | 16 | 15.57 | 14.21 | 14.03 |
| M18 | 2.5 | 27.33 | 26.67 | 18 | 17.57 | 14.21 | 14.03 |
| M20 | 2.5 | 30.33 | 29.67 | 20 | 19.48 | 17.23 | 17.05 |
| M22 | 2.5 | 33.39 | 32.61 | 22 | 21.48 | 17.23 | 17.05 |
| M24 | 3 | 36.36 | 35.61 | 24 | 23.48 | 19.28 | 19.06 |
| Size not listed? Please inquiry us! | |||||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you
