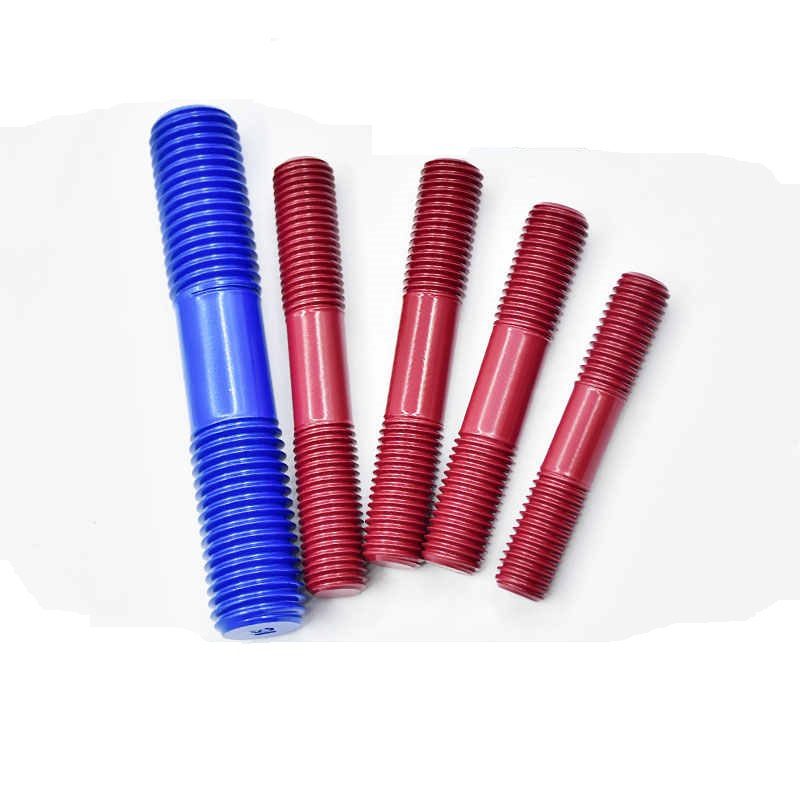

PTFE B8 Stud Bolts

B8 stud bolt is a headless fastener threaded on both ends. The designations B8 and B8M refer to specifications for two different stainless steel materials. The A193 B8/B8M stud bolt is a high-performance, highly reliable exotic material fasteners. Coated with PTFE ,A193 B8/B8M stud bolt excels in high-temperature environments and can withstand prolonged exposure to chemical and electrochemical corrosion. PTFE B8 stud bolts are widely used in industries such as chemical processing, petroleum, marine, and natural gas and so on.For quotes,inquiries,or custom stud bolts and nuts request, please feel free to send us an inquiry.


Material:B8/B8M Stainless Steel

Grade:8.8,12.8

Standard:A193

Size:M5-M80(Other sizes, please inquiry us)

PTFE B8 Stud Bolts Description

PTFE-coated B8 stud bolts are premium-grade fasteners designed for high-performance applications in demanding environments. Made from stainless steel conforming to ASTM A193 B8 specifications, these bolts are coated with polytetrafluoroethylene (PTFE), which provides exceptional resistance to corrosion, chemicals, and extreme temperatures. The PTFE coating also reduces friction, prevents galling, and enhances installation and removal processes.

These stud bolts are highly reliable in environments prone to chemical exposure, such as chemical processing plants, refineries, and offshore facilities. They also perform exceptionally well in high-temperature settings, making them suitable for heat exchangers, pressure vessels, and piping systems.

FastenMetal produce First-class specialized industries fasteners like stud bolts and nuts which made from a193 b7/b7m, b8/b8m,L7 and so on.For non standard stainless steel and exotic material fasteners (including non standard materials and sizes), we can usually offer as a manufactured special.

Technical Data & Availability

Studs Drawing - FastenMetal LTD

Unit:mm
Specification(d) M8 M10 M12 M14 M16 M18
b 28 32 36 40 44 48
x max 1.5P
L 32–300 40–300 50–300 60–300 60–300 60–300



Unit:mm
Specification(d) M20 M22 M24 M27 M30 M33
b 52 56 60 66 72 78
x max 1.5P
L 70–300 80–300 90–300 100–300 140–400 140–400



Unit:mm
Specification(d) M36 M39 M42 M48 M56
b 89 60 96 108 124
x max 1.5P
L 140–400 140–500 140–500 150–500 190–500
Size not Listed? Please inquiry us!



Shipping and Payment Terms:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you
