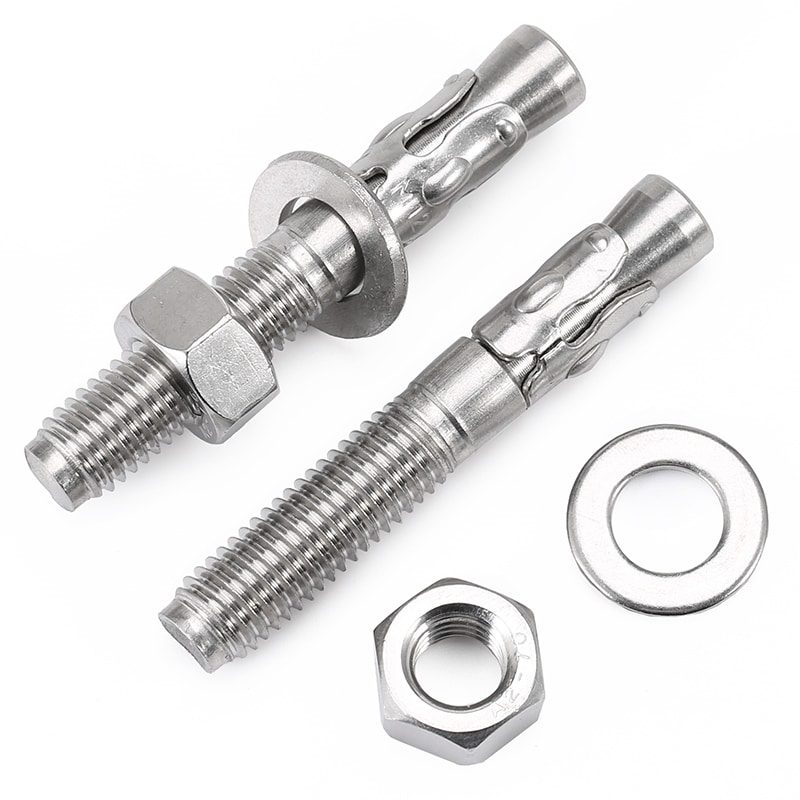

Wedge Anchor Bolts is primarily used for heavy-duty equipment, such as pipe rack hangers, seismic support brackets, glass curtain walls, elevator brackets, shelves, railings, and steel structures.Its design includes an expanding wedge that is inserted into a pre-drilled hole in concrete. By using a hammer or impact drill to drive the wedge anchor into the hole, and then tightening the screw to generate pulling force, the expanding wedge/conical compression clip expands to create friction, securing the anchor in place.
Finish:As finished
Material：Stainless Steel 304
Standard:DIN
Size:M6-M24
Sample:Free
| Specification | L | D | S | M | Drilling size |
| M6*50 | 50 | 6 | M6*12*1.6 | 10 | 6 |
| M6*60 | 60 | 6 | M6*12*1.6 | 10 | 6 |
| M6*75 | 75 | 6 | M6*12*1.6 | 10 | 6 |
| M6*100 | 100 | 6 | M6*12*1.6 | 10 | 6 |
| M8*60 | 60 | 8 | M6*12*1.6 | 13 | 8 |
| M8*70 | 70 | 8 | M6*12*1.6 | 13 | 8 |
| M8*75 | 75 | 8 | M6*12*1.6 | 13 | 8 |
| M8*80 | 80 | 8 | M6*12*1.6 | 13 | 8 |
| M8*90 | 90 | 8 | M6*12*1.6 | 13 | 8 |
| M8*100 | 100 | 8 | M6*12*1.6 | 13 | 8 |
| M8*115 | 115 | 8 | M6*12*1.6 | 13 | 8 |
| M10*70 | 70 | 10 | M10*20*2 | 17 | 10 |
| M10*75 | 75 | 10 | M10*20*2 | 17 | 10 |
| M10*80 | 80 | 10 | M10*20*2 | 17 | 10 |
| M10*90 | 90 | 10 | M10*20*2 | 17 | 10 |
| M10*100 | 100 | 10 | M10*20*2 | 17 | 10 |
| M10*120 | 120 | 10 | M10*20*2 | 17 | 10 |
| M12*75 | 75 | 12 | M12*24*2.5 | 19 | 12 |
| M12*100 | 100 | 12 | M12*24*2.5 | 19 | 12 |
| M12*110 | 110 | 12 | M12*24*2.5 | 19 | 12 |
| M12*115 | 115 | 12 | M12*24*2.5 | 19 | 12 |
| M12*120 | 120 | 12 | M12*24*2.5 | 19 | 12 |
| M12*140 | 140 | 12 | M12*24*2.5 | 19 | 12 |
| M12*150 | 150 | 12 | M12*24*2.5 | 19 | 12 |
| M16*100 | 100 | 16 | M16*30*3 | 24 | 16 |
| M16*120 | 120 | 16 | M16*30*3 | 24 | 16 |
| M16*140 | 140 | 16 | M16*30*3 | 24 | 16 |
| M16*150 | 150 | 16 | M16*30*3 | 24 | 16 |
| MOQ | 1 Pallet, 1 Ton or 3000USD |
| Material | Stainless Steel 304,Stainless Steel 316 |
| Surface finish | Polished |
| Sizes | Custom Size,standard sizes |
| Technique Procedure | Stamping,Bend,Cut,Threads rolling |
| HS Code | 7318159090 |
Color-plated galvanized wedge anchors for concrete are specialized fasteners designed for securing objects to concrete surfaces. These anchors are typically made of carbon steel and then galvanized to enhance their resistance to corrosion,The color plating provides an aesthetic touch, and in some cases, it can indicate different levels of corrosion resistance or grades of material.
Finish:Color plated galvanized
Material：Stainless Steel 304,Carbon Steel
Standard:DIN
Size:M6-M24
Sample:Free
Grade:4.8,8.8,10.9, 12.9
Galvanized Wedge Anchor Bolts are usually made from stainless steel or carbon steel, with a galvanized coating to boost corrosion resistance and extend durability. Concrete wedge anchors are easy to install and don’t need precise hole depth or cleanliness in the concrete,and the price is cheaper.
Finish:Zinc Coating
Material：Stainless Steel 304,Carbon Steel
Standard:DIN
Size:M6-M24
Sample:Free
Grade:8.8,10.9, 12.9
