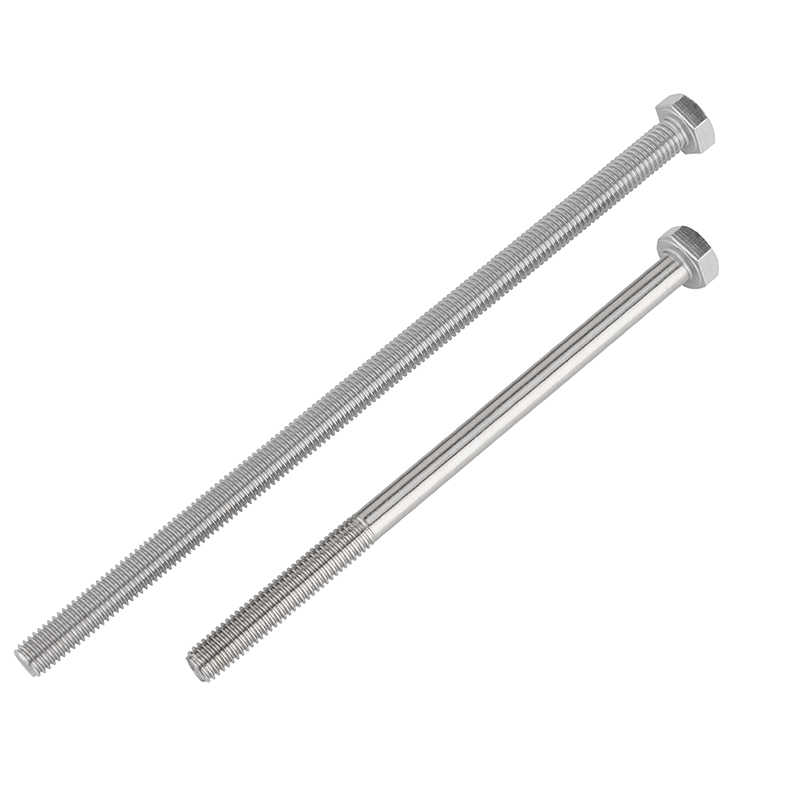

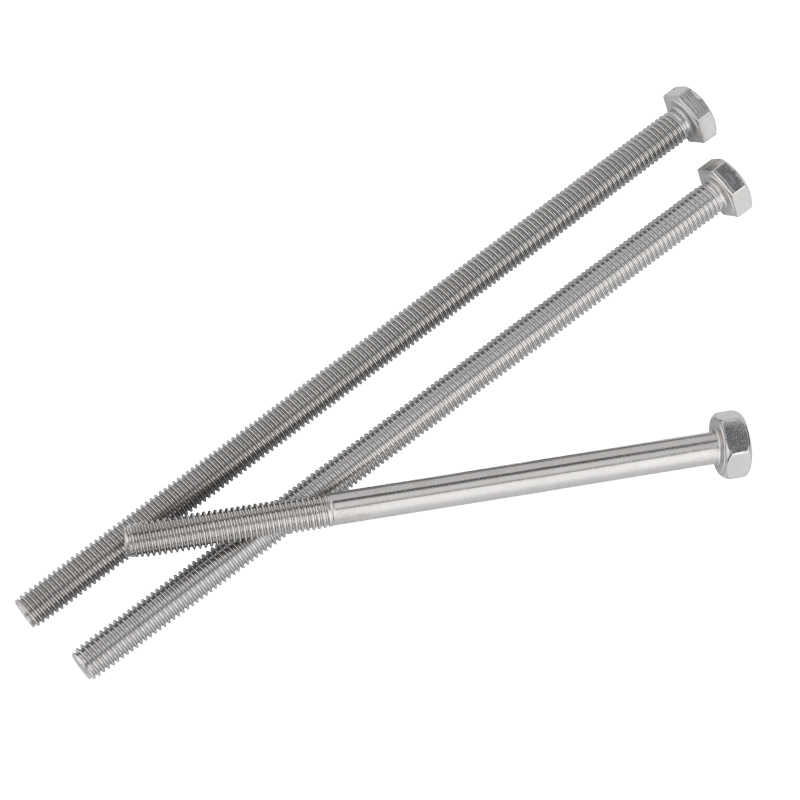

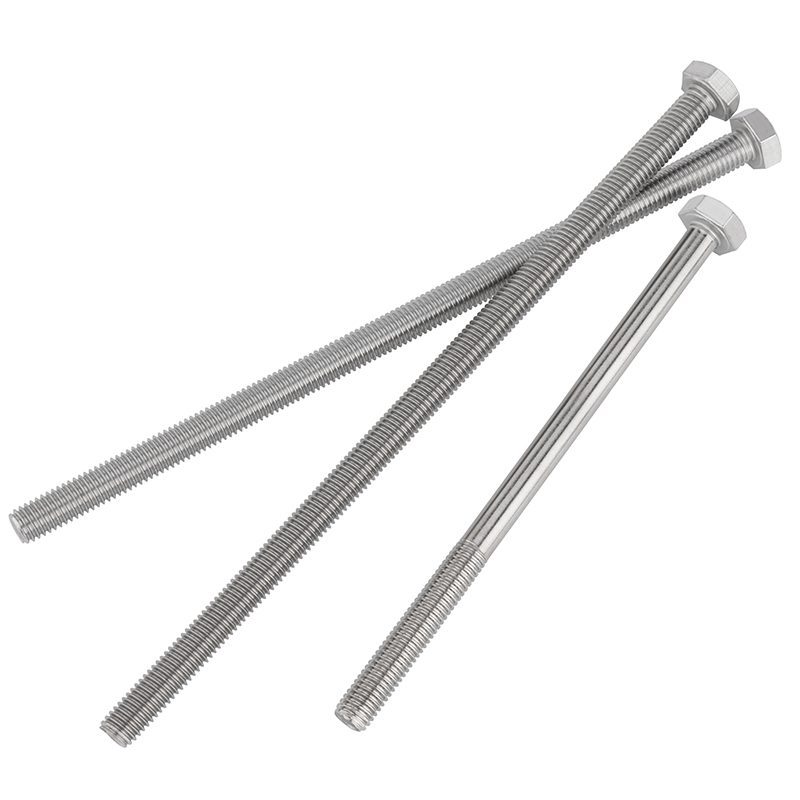

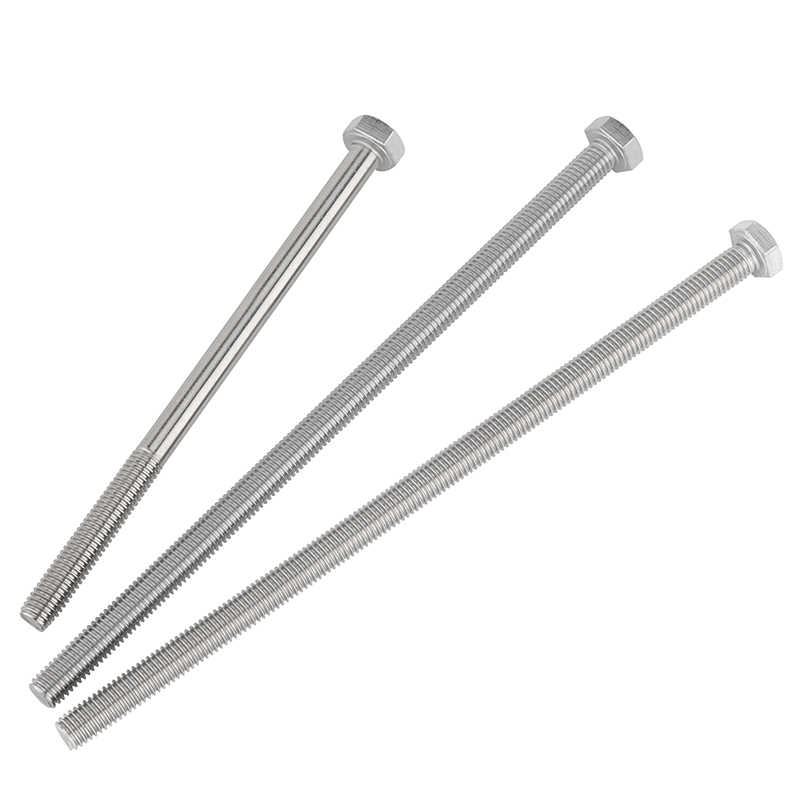

Stainless Steel Long Hex Bolts

Stainless Steel Long Hex Bolts is a bolt with a hexagonal head, distinguished from a standard hex bolt primarily by its longer length. It is widely used across various fields, known for its ability to withstand high-strength loads and adapt to different environments.Made from stainless steel, they offer strength and rust resistance, making them ideal for both indoor and outdoor use, especially in environments exposed to moisture or chemicals. For quotes,inquiries,or custom bolts and nuts request, please feel free to click the button”get a free quote”.

Material: Stainless Steel 304, 316

Grade:8，10.9,12.8

Standard:DIN444

Size:M5-M30(Other sizes, please inquiry us)

Category Stainless Steel Bolts

Stainless Steel Long Hex Bolts Description

Stainless Steel Long Hex Bolts is a commonly used fastener, features its hexagonal head and extended shaft. It is widely used across various fields. In Machinery Assembly: Stainless Steel long hex bolts are often used to connect thick working components and bases or other large parts. With strong tensile strength and reliable fastening capability, they help ensure the safe operation of equipment. In Building Structures: These bolts also play a vital role in construction. For example, they are used in bridge construction to secure the connection between the bridge deck and piers. Additionally, they are essential for installing external wall panels and providing structural support for glass curtain walls in high-rise buildings, offering firm and stable support.

As a leading custom bolts manufacturer, FastenMetal handles a large variety of stainless steel bolts and nuts. Everything from common hex bolts to special bolts made exactly to your print. We can manufacture and supply a variety of bolts and nuts in a vast set of materials, including304, 316 stainless steel bolts and nuts

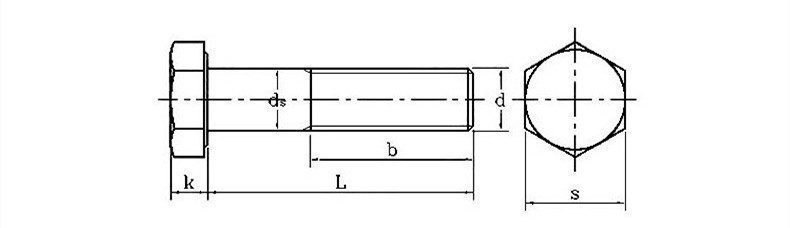

Our Stainless Steel Long Hex Bolts Size Chart

Unit:mm
Specification(d)	thread distance(P)	ds		k		s
Specification(d)	thread distance(P)	max	min	max	min	max	min
M4	0.7	4	3.7	3	2.6	7	6.64
M5	0.8	5	4.7	3.24	2.76	8	7.64
M6	1	6	5.7	4.24	3.76	10	9.64
M8	1.25	8	7.64	5.54	5.06	13	12.57
M10	1.5	10	9.64	6.69	6.11	16	16.57
M12	1.75	12	11.57	7.79	7.21	18	18.48
M14	2	14	13.57	9.09	8.51	21	21.16
M16	2	16	15.57	10.29	9.71	24	23.16
M18	2.5	18	17.57	11.85	11.15	27	26.15
M20	2.5	20	19.48	12.85	12.15	30	29.16
M22	2.5	22	21.48	14.35	13.65	34	33
Size not listed? Please inquiry us.

Shipping and Payment Terms:

We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
We do accept small, urgent orders that need to be shipped by air.
We currently accept T/T & L/C.
Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
