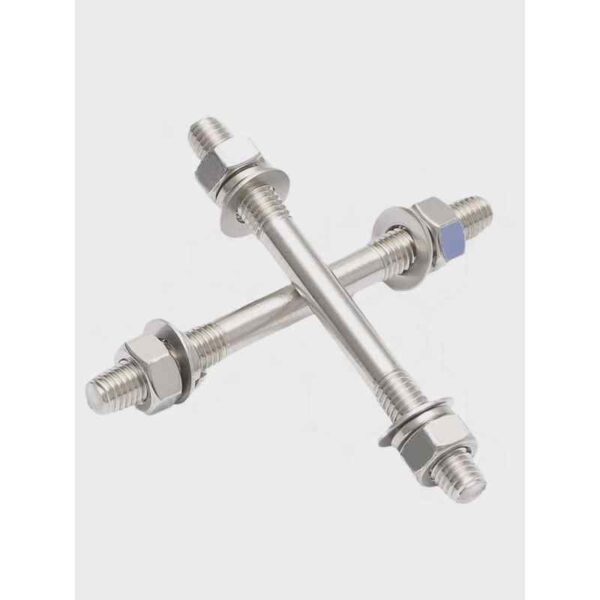

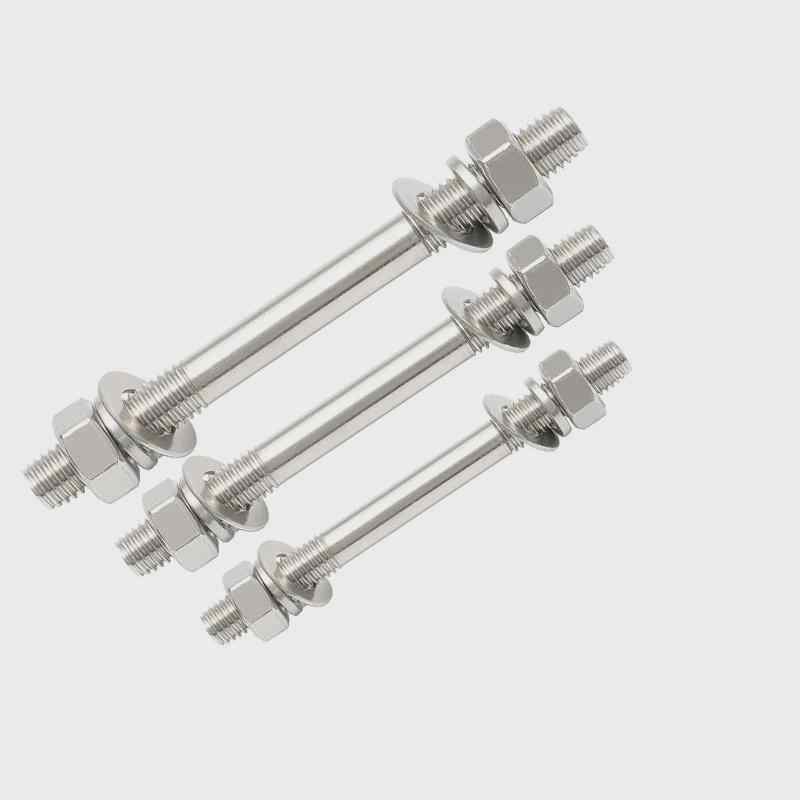

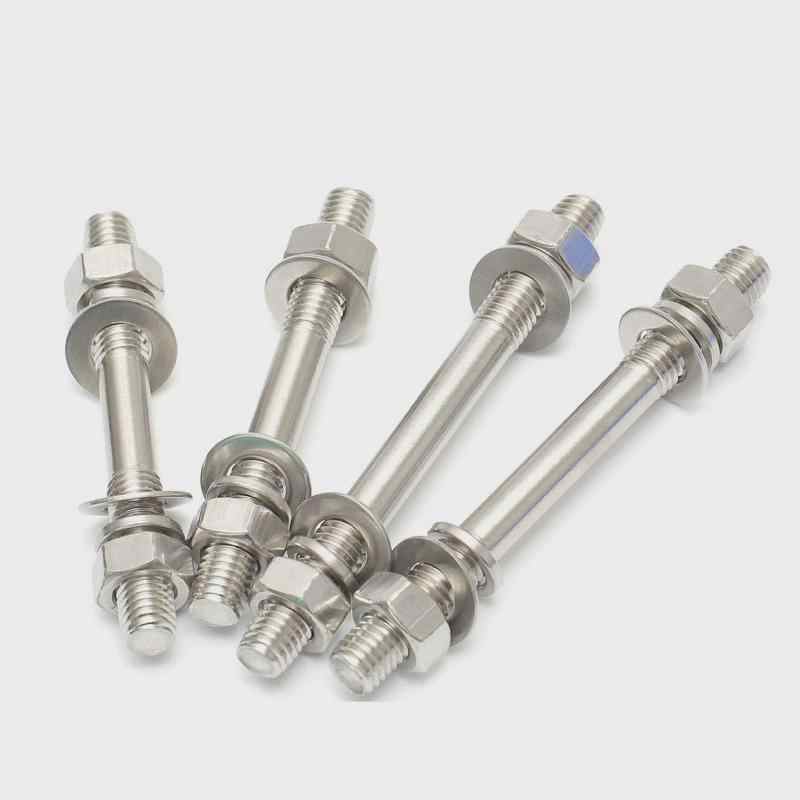

Stainless Steel Stud Bolts and Nuts
Stainless steel stud bolts and nuts are made from corrosion-resistant stainless steel. Stud bolts are threaded rods without a head, designed for use with nuts on both ends. They are commonly used in high-temperature and high-pressure applications, such as in pipelines, construction, and machinery, offering strength and resistance to rust, making them ideal for outdoor or harsh environments.For quotes,inquiries,or custom bolts and nuts request, please feel free to click the button”get a free quote”.
Material: Stainless Steel
Grade:8.8,12.8
Standard:GB901
Size:M5-M80(Other sizes, please inquiry us)
Stainless Steel Stud Bolts and Nuts Description
Stainless Steel Stud Bolts and Nuts features its ability to provide a high-strength connection.They are well-suited for working conditions requiring heavy loads. The installation of double end stud bolts and nuts is relatively simple: after drilling the hole, insert the bolt and rotate it to complete the fastening quickly. Additionally, they are reusable, allowing for multiple disassemblies and installations, making later maintenance and replacement very convenient.
If you are seeking the finest and trusted Stud Bolts and Nuts Supplier in China, then you can choose us because we stock wide ranges of stud bolts and nuts from M5-M130 with length from 10mm-1300mm. We are also expert stud bolts and nuts manufacturers manufacturing from A2 Stainless Steel, A4 Stainless Steel and Brass as standard, with other materials and finishes available on request including Aluminium and Titanium.
Our Stainless Steel Stud Bolts and Nuts Size Chart
| Unit:mm | ||||||
| Specification(d) | M8 | M10 | M12 | M14 | M16 | M18 |
| b | 28 | 32 | 36 | 40 | 44 | 48 |
| x max | 1.5P | |||||
| L | 32–300 | 40–300 | 50–300 | 60–300 | 60–300 | 60–300 |
| Unit:mm | ||||||
| Specification(d) | M20 | M22 | M24 | M27 | M30 | M33 |
| b | 52 | 56 | 60 | 66 | 72 | 78 |
| x max | 1.5P | |||||
| L | 70–300 | 80–300 | 90–300 | 100–300 | 140–400 | 140–400 |
| Unit:mm | ||||||
| Specification(d) | M36 | M39 | M42 | M48 | M56 | |
| b | 89 | 60 | 96 | 108 | 124 | |
| x max | 1.5P | |||||
| L | 140–400 | 140–500 | 140–500 | 150–500 | 190–500 | |
| Size not Listed? Please inquiry us! | ||||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you
