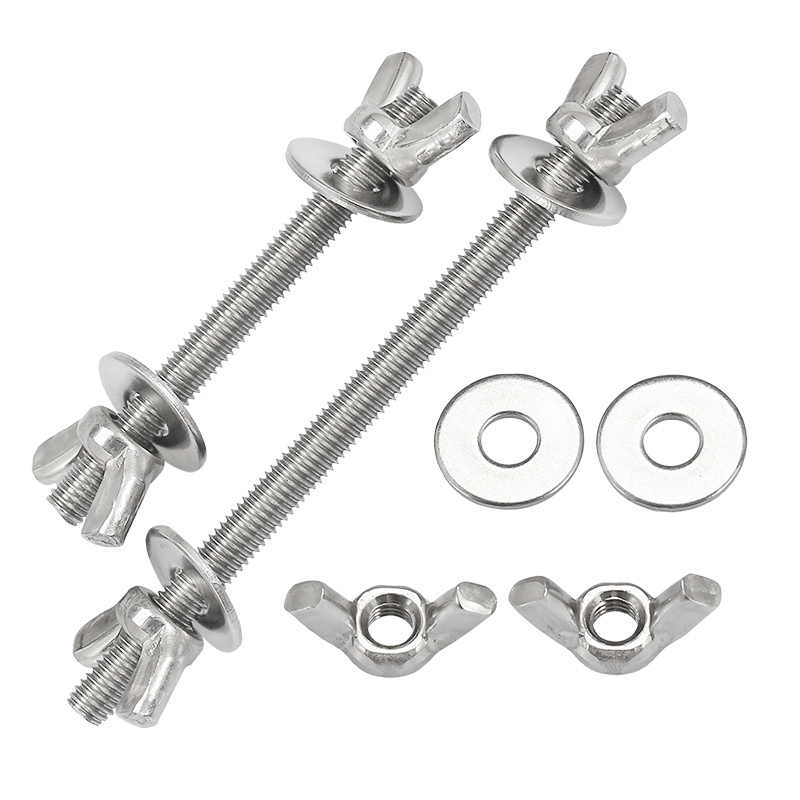

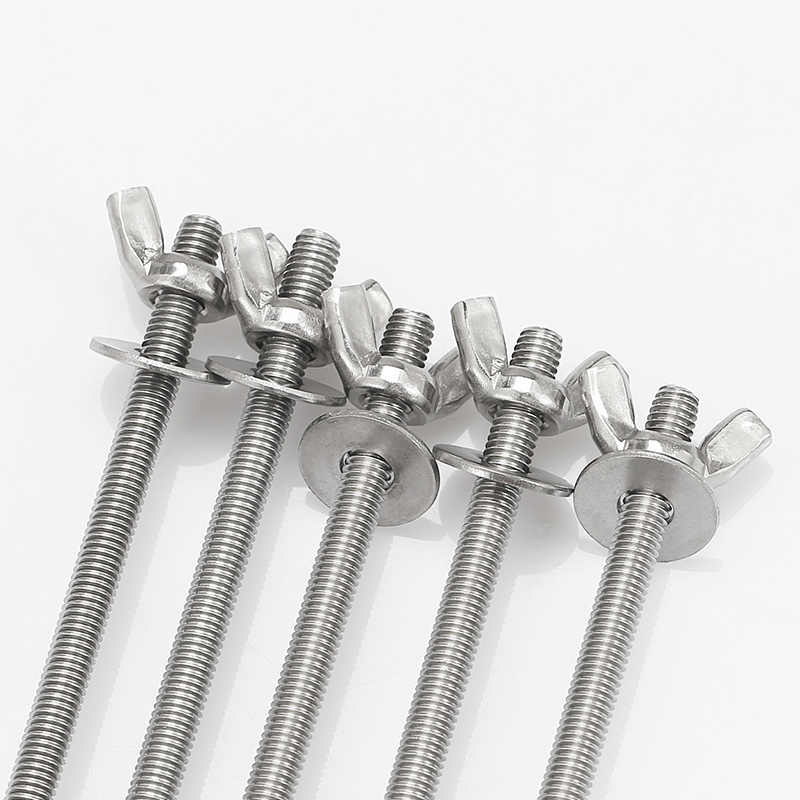

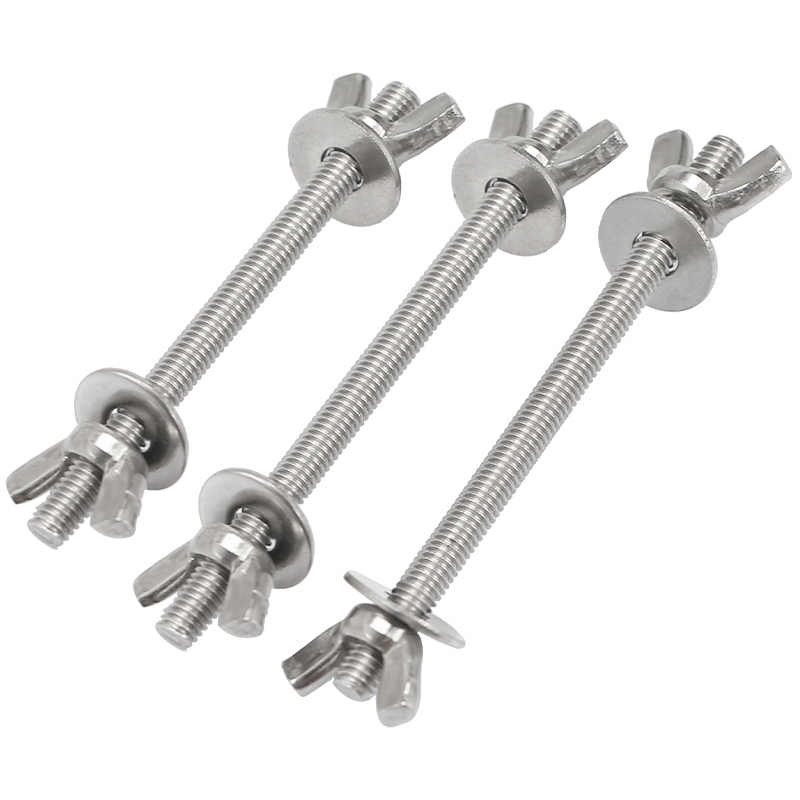

Stainless Wall-Penetrating Bolts and Wing Nuts

Stainless Wall-Penetrating Bolts and Wing Nuts are durable bolts and nuts set designed for secure installation through walls or thick surfaces. Made from stainless steel, they offer high corrosion resistance, making them ideal for both indoor and outdoor applications. The wall-penetrating bolts provide strong, stable support, while the wing nuts allow for easy hand-tightening and adjustments without needing tools. Suitable for construction, mounting heavy items, or any situation where secure wall penetration is required.

Material: Stainless Steel 304, 316

Grade:8

Standard:DIN

Size:M6-M16(Other sizes, please inquiry us)

Stainless Wall-Penetrating Bolts and Wing Nuts Description

FastenMetal is a  professional manufacturer and vendor of stainless steel bolts and nuts. Wall-Penetrating Bolts and Wing Nuts are usually used for construction, through walls, or components. Our Wall-Penetrating Bolts and Wing Nuts are made of premium SS304 or SS316L, have excellent corrosion resistance. Diameter M3-M100, length, chamfer and head mark is customized according to customer requirements. Advanced equipment, high quality management, the production of high quality and good price of bolts and nuts.



Our Wall-Penetrating Bolts and Wing Nuts Size Chart

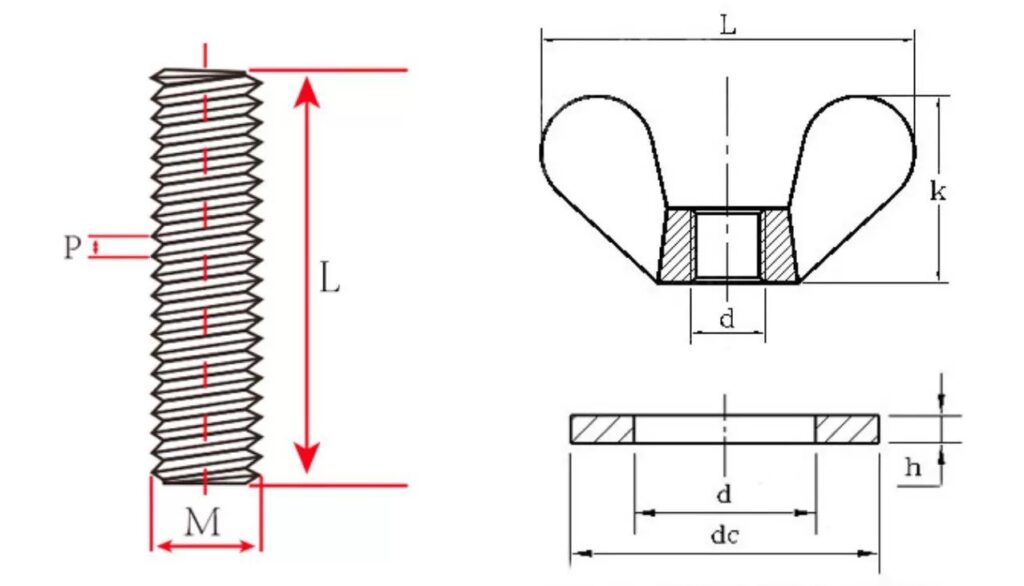

Wall-Penetrating Bolts and Wing Nuts drawing

Unit:mm
Specification Thread (M) Nut thread (d) washer(d*dc*h)
M3 3 3 3*9*0.8
M4 4 4 4*12*1.0
M5 5 5 5*15*1.2
M6 6 6 6*18*1.5
M8 8 8 8*20*2.0
M10 10 10 10*25*2.0
M12 12 12 12*30*2.0
Size not list? Please inquiry us
