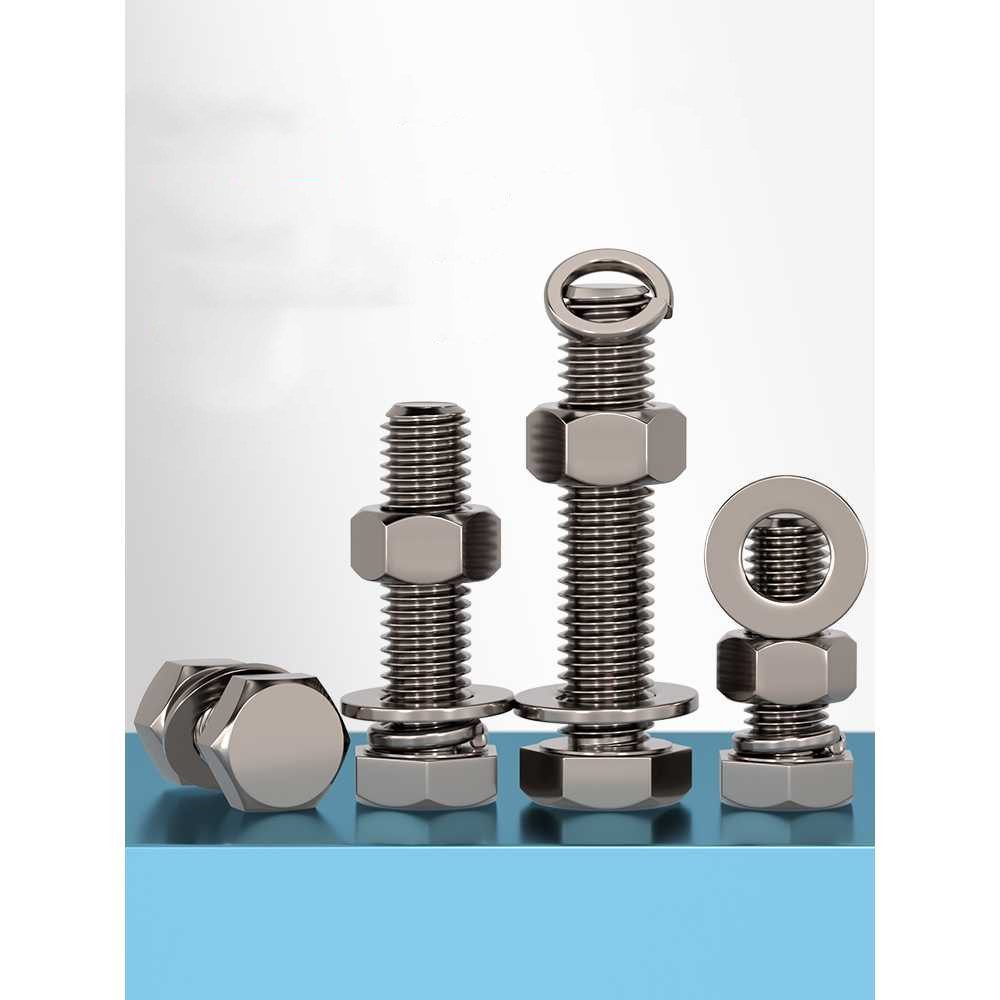

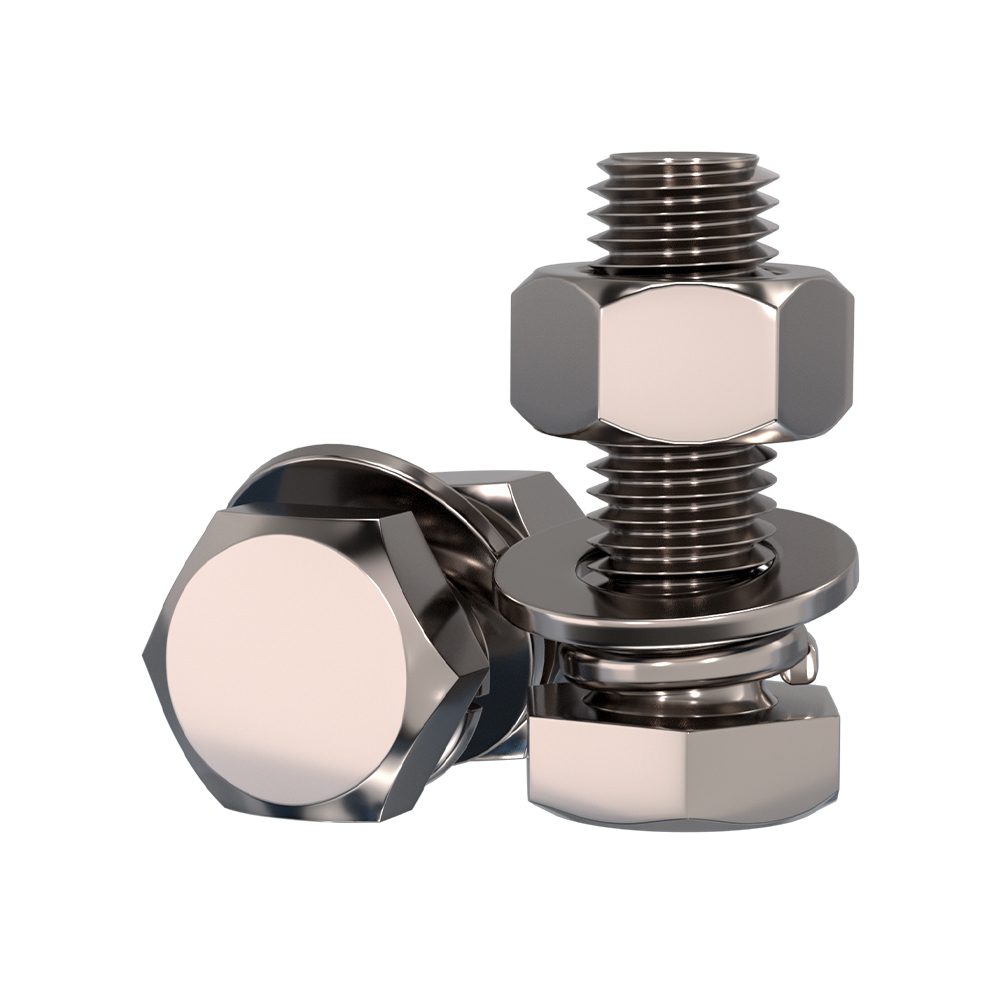

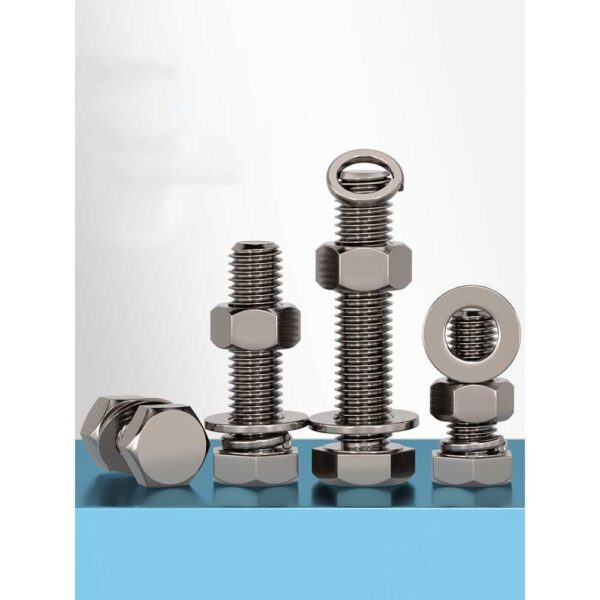

TA2 Titanium Bolts and Nuts DIN933
Material: TA2 Titanium
Grade:12.8,10.8
Standard:DIN933
Size:M5-M36(Other sizes, please inquiry us)
TA2 Titanium Bolts and Nuts DIN933 Description
Titanium bolts and nuts offer irresistible unique advantages. Not only do they deliver outstanding performance, but they are also lightweight, which helps reduce the overall weight of structures and improve overall efficiency. Titanium bolts and nuts also have excellent thermal and electrical conductivity, making them suitable for various special environments and engineering requirements. Whether you are working on aerospace projects, automotive manufacturing, or electronic device assembly, titanium bolts and nuts provide the best solution to create strong and reliable engineering projects.
FastenMetal is the leading titanium fasteners manufacturer of a variety of standard and customized titanium bolts and nuts. Our titanium bolts and nuts have the ability to meet the demands of various industrial applications and the wire diameter we can do ranges from M4 to M48. We are also an industrial titanium fasteners manufacturer. We can manufacture all types of tianium bolts,screws and nuts in different titanium materials A1,TA2,TA3,TA9,GR1,GR2,TC4,GR5.
Technical Data & Availability

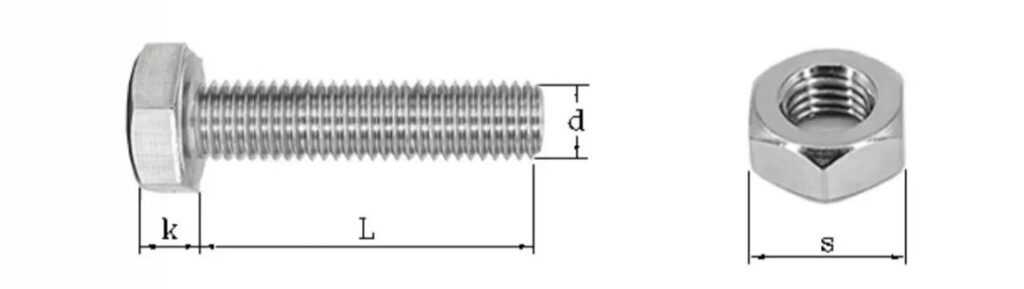

| Unit:mm | |||||
| Specification(d) | Pitches(P) | K | s | ||
| max | min | max | min | ||
| M3 | 0.5 | 2.2 | 1.9 | 5.5 | 5.25 |
| M4 | 0.7 | 3 | 2.8 | 7 | 6.65 |
| M5 | 0.8 | 3.74 | 3.26 | 8 | 7.65 |
| M6 | 1 | 4.24 | 3.76 | 10 | 9.65 |
| M8 | 1.25 | 5.54 | 5.06 | 13 | 12.57 |
| M10 | 1.5 | 6.69 | 6.11 | 17 | 16.57 |
| M12 | 1.75 | 7.79 | 7.21 | 19 | 18.48 |
| M14 | 2 | 9.09 | 8.51 | 22 | 21.16 |
| M16 | 2 | 10.29 | 9.71 | 24 | 23.16 |
| M18 | 2.5 | 11.85 | 11.15 | 27 | 26.15 |
| M20 | 2.5 | 12.85 | 12.15 | 30 | 29.16 |
| M22 | 2.5 | 14.22 | 13.78 | 32 | 31.61 |
| Size not Listed? Please inquiry us. | |||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you
