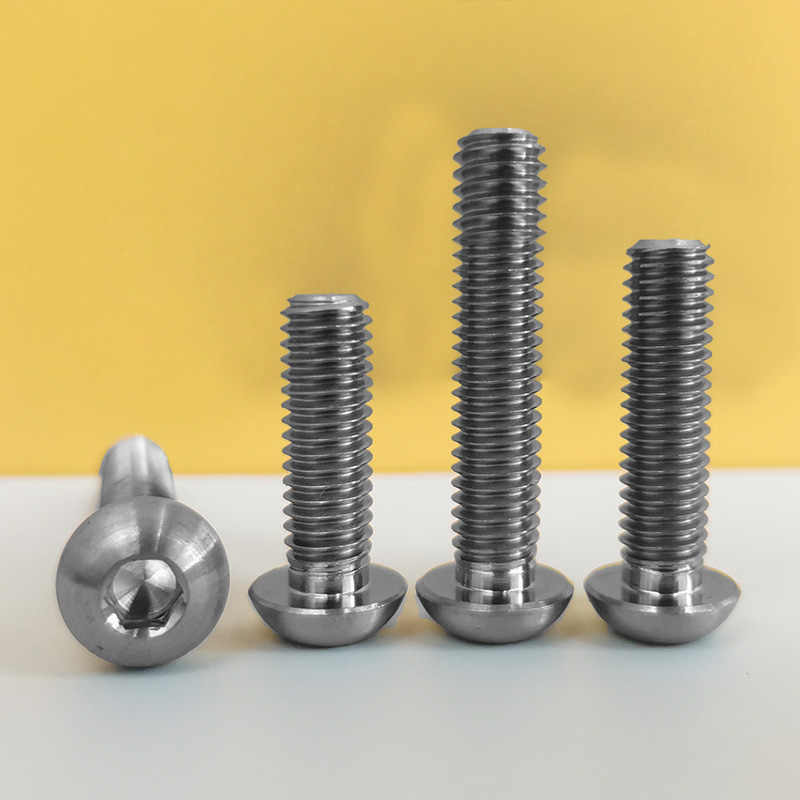

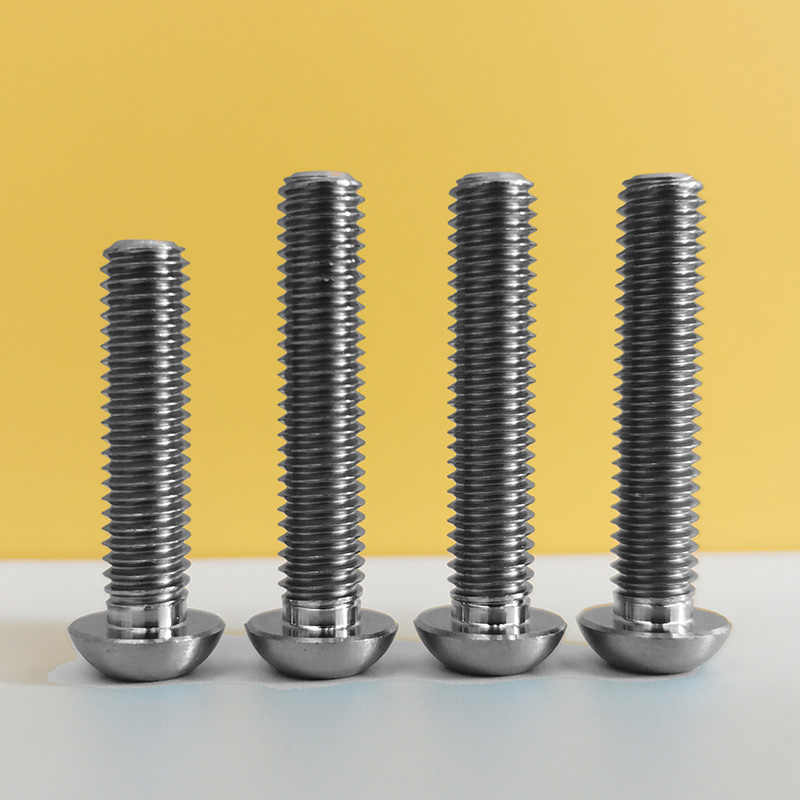

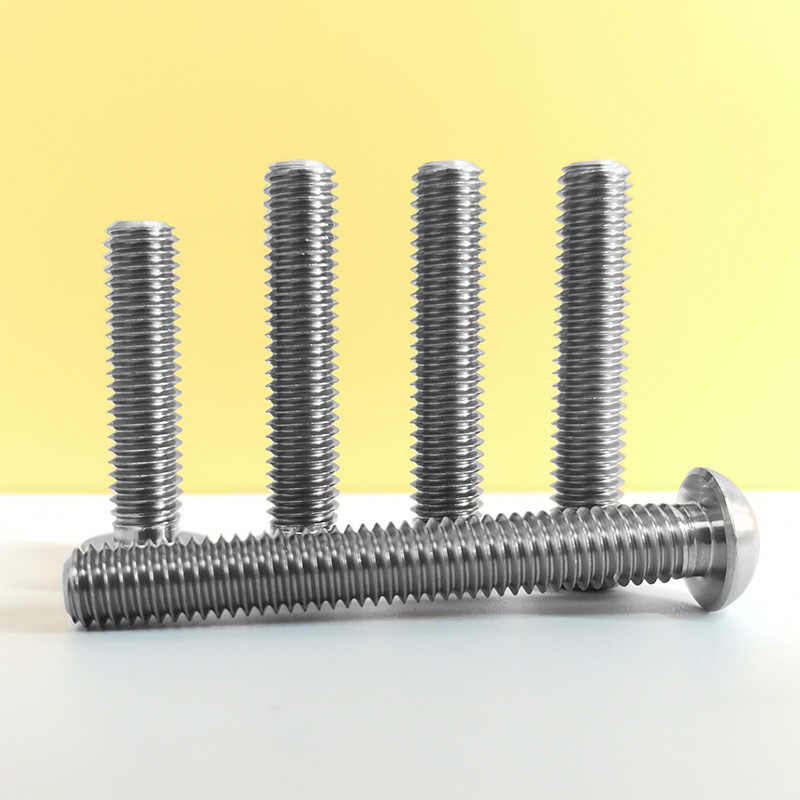

Titanium Socket Button Screws DIN912
Material: TA2 Titanium
Grade:12.8,10.8
Standard:DIN912
Size:M5-M16(Other sizes, please inquiry us)
Titanium Socket Button Screws DIN912 Description
Titanium Socket Button Screws are a type of screw with a hexagonal socket and a countersunk head design. they features high strength and lightweight because made from titanium.The production process of titanium hex socket countersunk screws requires strict control of the quality and dimensional accuracy of the finished product. Common production processes include heat treatment, cold working, and CNC machining.
We pride ourselves on offering a comprehensive range of titanium products such titanium hex bolts,Countersunk screws,titanium threaded rods, titanium nuts and other Non-standard titanium parts. Materials and finishes available include titanium TA1,TA2,TA3,TA9,GR1,GR2,TC4,GR5.We accommodate both small orders and bulk production, ensuring flexibility to meet the needs of various projects. Our advanced manufacturing capabilities and skilled team allow us to maintain high quality and precision, regardless of order size.Contact us today to discuss your requirements or request a quote. We are committed to delivering reliable, high-performance solutions tailored to your needs!

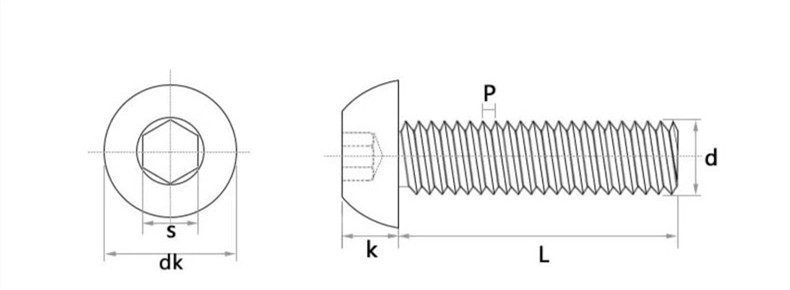

Technical Data & Availability
| Specification(d) | Pitches | dk | k | s | |||
| max | min | max | min | max | min | ||
| M2 | 0.4 | 3.98 | 3.62 | 2.0 | 1.86 | 1.56 | 1.52 |
| M2.5 | 0.45 | 4.68 | 4.32 | 2.5 | 2.36 | 2.06 | 2.0 |
| M3 | 0.5 | 5.68 | 5.32 | 3.0 | 2.86 | 2.58 | 2.52 |
| M4 | 0.7 | 7.22 | 6.78 | 4.0 | 3.82 | 3.08 | 3.0 |
| M5 | 0.8 | 8.72 | 8.28 | 5.0 | 4.82 | 4.10 | 4.0 |
| M6 | 1 | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 |
| M10 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.2 | 8.03 |
| M12 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.03 |
| Size not listed? Please inquiry us! | |||||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
