Brass Wing Nuts

The brass wing nut is a special type fasteners features its unique butterfly shape. It can be installed and removed by hand without the need for additional tools, making it very convenient to use. Typically, wing nuts are often used in locations where frequent adjustments of tightness are required.Made from brass, they offer good corrosion resistance and durability, making them suitable for applications where frequent adjustments are needed, such as in woodworking, electronics, and various assembly tasks.

Material:H65 ,H59

Standard:GB

Payment Term:TT OR LC AT SIGHT

Delivery Term:FOB,CNF,CIF,EXW

MOQ:1000pcs

Brass Wing Nuts Description

Brass Wing nuts are typically made using processes like cold heading, automatic lathes, and thread rolling.Brass wing nuts are commonly used in various applications due to their ease of use and corrosion resistance.Such as electrical equipment,they are often used in electrical panels and connections because brass is a good conductor.Other industries like furniture Assembly,outdoor equipment,automotive,Brass wing nuts also have a wide  application.Wing nuts are great because they’re easy to use and can be manipulated easily with your fingers, plus they’re simple to take off. The downside is that they don’t have a strong connection and can’t hold heavy loads.Want brass bolts and nuts sets.Please click here. Bespoke parts can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.

Our Non-standard Brass Parts Display

customize non standard brass nuts

Brass Nuts Raw Materials We use(H59 and H62):

brass nuts materials we use

Our Brass Wing Nuts Size Chart

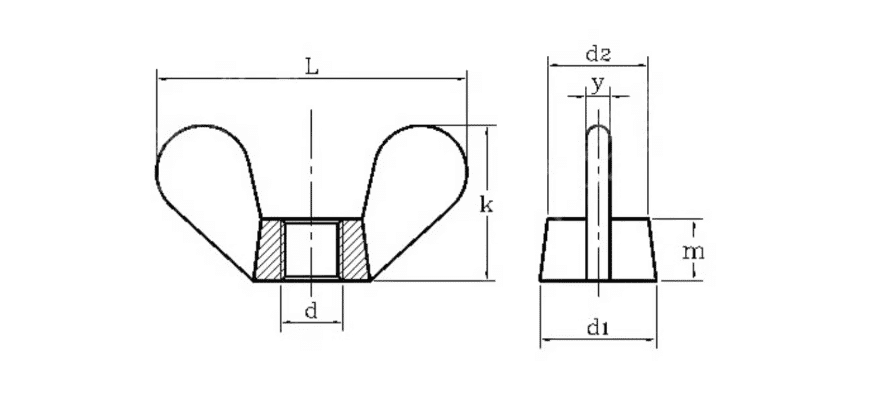

wing nuts drawing
unit:(mm)
d M3 M4 M5 M6 M8 M10 M12 M14 M16 M20
p(thread distance) 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5
d1 9.57 10.3 10.45 11.8 12.41 18 18 22.1 25.6 29.7
L 26.65 27.86 28.17 28.61 33.05 50.82 50.82 58.6 61.9 70
K 12.3 12.45 12.1 14.73 16.09 21.56 21.56 30 31.5 35.1
Y 2.36 2.38 2.48 3.16 3.25 5.16 5.16 3.9 5.6 8.6
M 6.5 6.76 6.96 8.17 9.2 11.02 11.02 16.2 16.3 18.5
If you have a question, require a unique solution or are looking for a fastener that is not listed, please contact us with your requirements.
