Hex Blacken Flanged Nuts for Mould Clamp

A mold clamp flanged nut is a type of fastener used to secure and connect mold components. It typically features internal threads and is used in conjunction with bolts or rods to provide fastening and connection. Mold clamp nuts play an important role in mold manufacturing and maintenance, ensuring that various parts of the mold are securely connected, which in turn guarantees the normal operation of the mold and the quality of the products.

Material: Stainless Steel,Carbon Steel

Standard:DIN

Finish: As finished

Size:M8-M24

Strength Grade:Grade8.8,10.9.12.8

MOQ:1000pcs

Category Tags , , ,
Get A Free Quote

Hex Blacken Flanged Nuts for Mould Clamp Description

The main features of mold clamp lock nuts include high strength and wear resistance. They are typically made from high-strength materials like carbon steel or stainless steel to ensure stable performance under high pressure and temperature conditions. Additionally, many mold clamp nuts come with washers to increase friction and prevent loosening. These characteristics make mold clamp nuts highly popular in industrial applications that require precision and reliable connections.Bespoke fasteners can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.

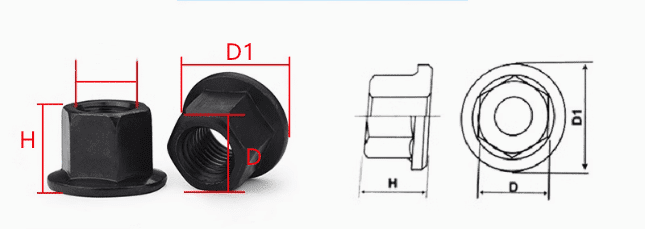

Our Hex Blacken Flanged Nuts for Mould Clamp Size Chart
Specification(inner diameter) D(mm) H(mm) D1(mm)
M8 14 13.14 19-22
M10 17 14.15 19-22
M12 19 18.48 22-26
M14 22 18.13 24-28
M16 24 23 32-36
M18 27 25.48 34-38
M20 29 32.15 36-41
M22 31 35.57 40-44
M24 36 37.86 46-52
Not listed in the size chart? Please send us an inquiry.

Shipping and Payment Terms:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
