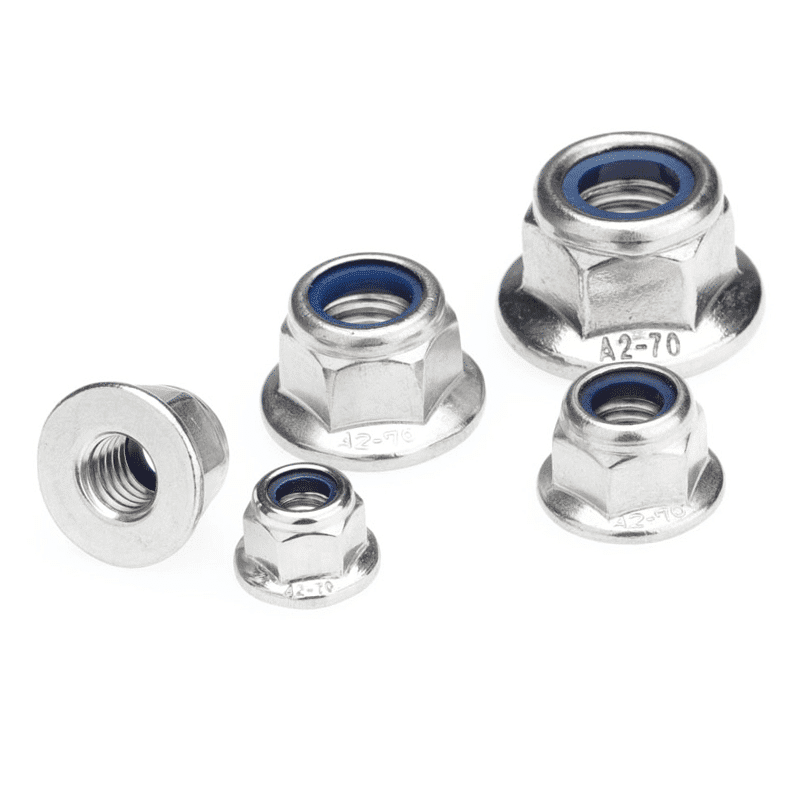

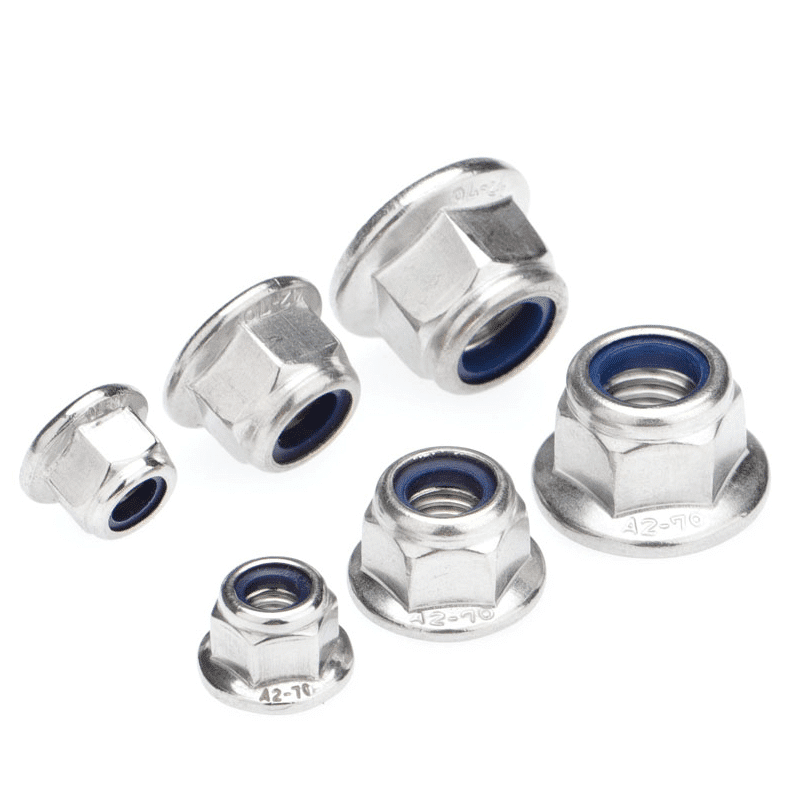

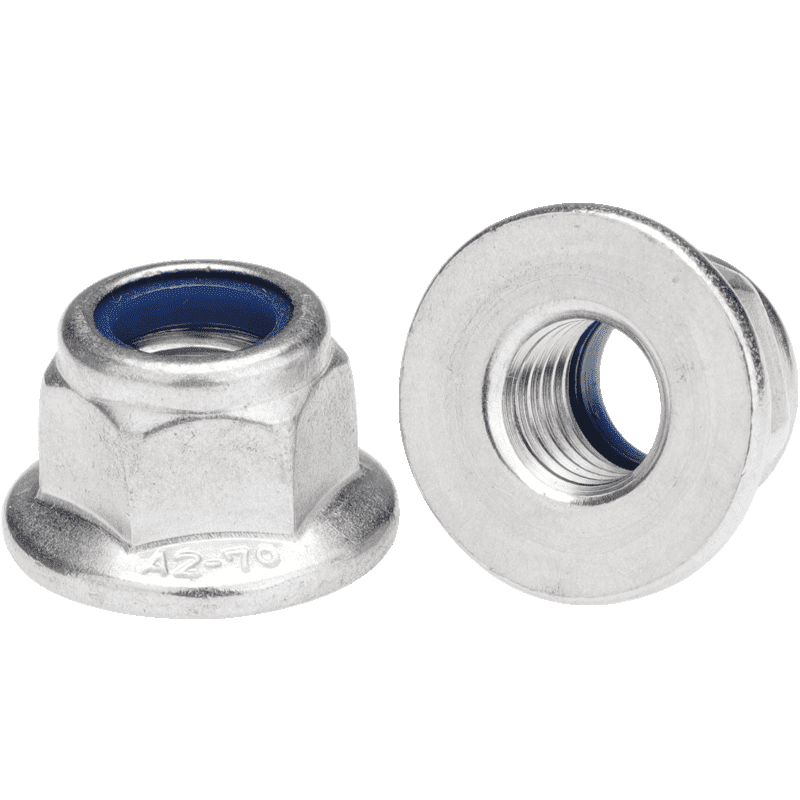

Hex Flange Nylon Insert Lock Nut

A flange nylon insert lock nut is a type of nut that features a built-in serrated washer for added stability and a nylon insert that provides resistance against loosening due to vibration. The flange helps distribute the load, while the nylon insert grips the threads of the bolt, ensuring a secure fit.

Material: Stainless Steel

Standard:DIN

Finish: As finished

Size:M3-M20

Strength Grade:Grade8.8,10.9.12.8

MOQ:1000pcs

Category Tags , , , , , ,
Get A Free Quote

Hex Flange Nylon Insert Lock Nut Description

The flange nylon insert lock nuts are  made from stainless steel materials.Besides its serrated flange panel,The key feature of this lock nut is the nylon insert, which is located inside the nut’s threaded area. The nylon creates friction against the bolt threads when the nut is tightened. This friction helps to prevent the nut from loosening over time, making it ideal for applications where vibrations are present, such as in automotive, aerospace, and machinery settings.Bespoke fasteners can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.

Our Hex Flange Nylon Insert Lock Nut Size Chart

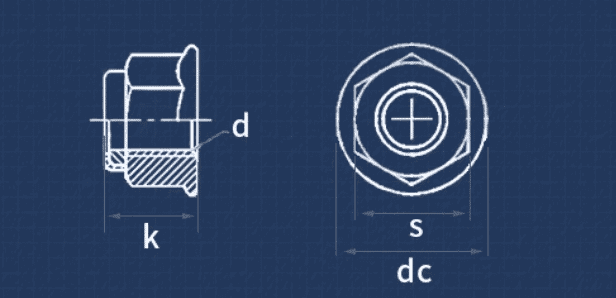

nylon locking nuts drawing
Unit:mm
d(inner diameter) P (thread distance) dc k s
M3 0.5 7.8 49-5.1 5.4-5.5
M4 0.7 9.6-10.1 6-6.5 6.6-7
M5 0.8 11.1 6.74-7.1 7.78-8
M6 1 13.3-13.5 8.74-9.1 9.78-10
M8 1.25 17.9 10.67-11.1 12.73-13
M10 1.5 21.8 13-13.5 14.73-15
M12 1.75 24.4-25.4 15.2-15.9 17.73-18
Not listed in the size chart? Please send us an inquiry.

Shipping and Payment Terms:

  • We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
  • We do accept small, urgent orders that need to be shipped by air.
  • We currently accept T/T & L/C.
  • Please contact us if you have any questions about shipping or payment, we will be happy to assist you.
