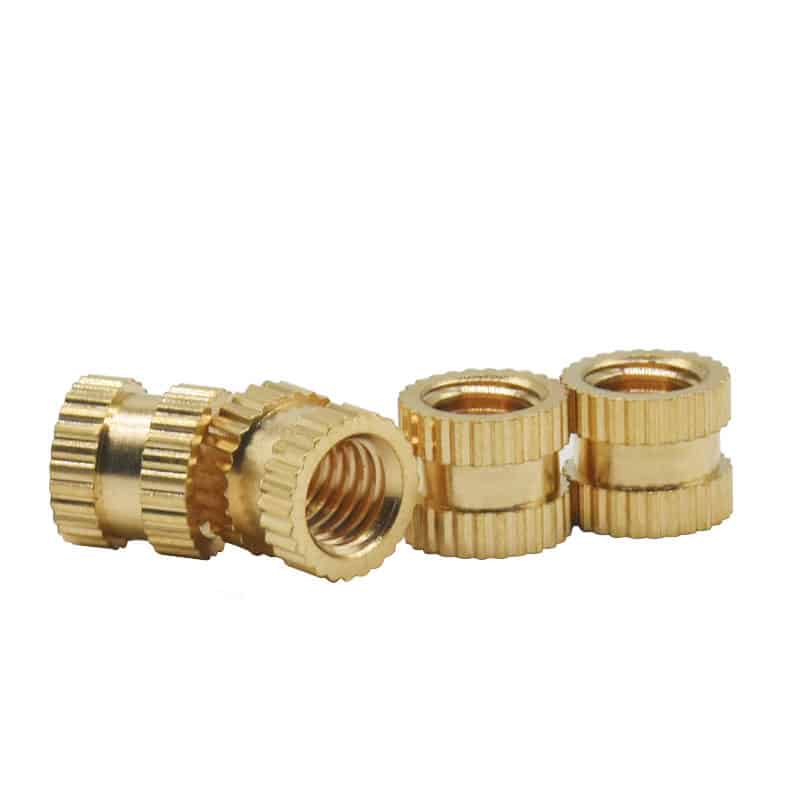

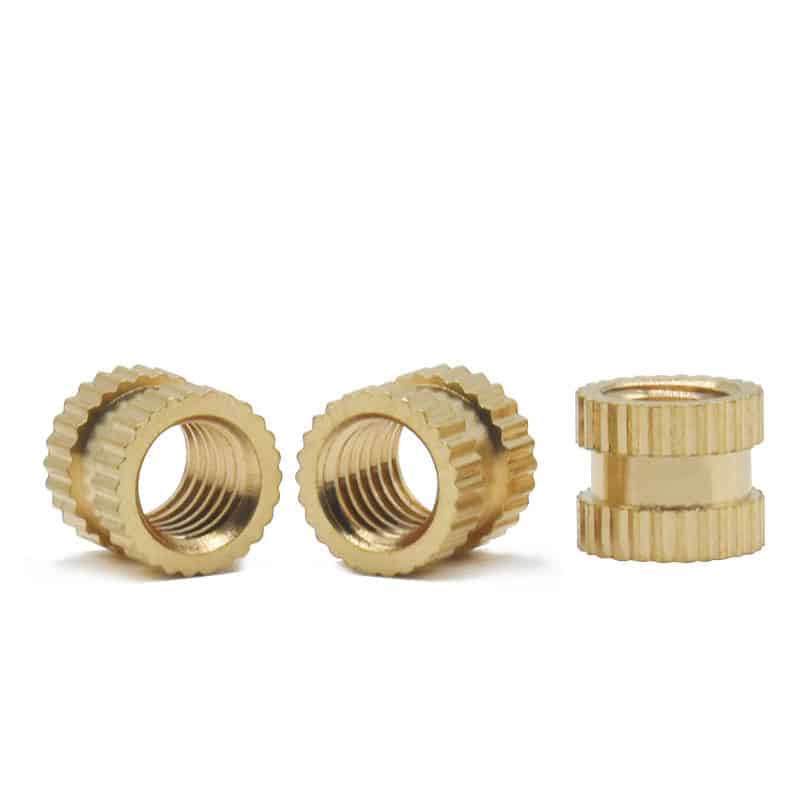

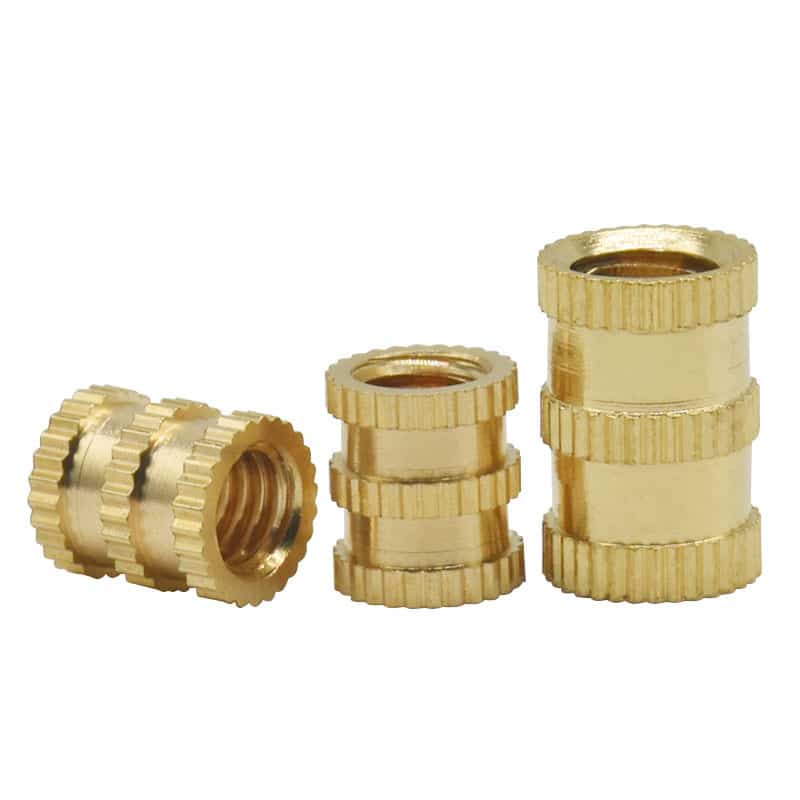

Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded
Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded
Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded
Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded
Facebook Twitter Youtube Whatsapp

Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded

The injection-molded brass nut, also known as an embedded brass nut or insert brass nut, comes in various types and serves multiple purposes in the market. These nuts are primarily installed by heating the product and embedding it into plastic parts or directly using molds for injection molding. Brass nuts have excellent thermal conductivity, allowing them to quickly transfer heat when heated, softening the plastic hole area and facilitating smooth insertion. During mold injection, the knurling process on the brass insert creates friction and interlocking force within the plastic part, ensuring a secure fit and preventing it from easily coming loose.

Category Tags , , , ,
Get A Free Quote

Knurled Insert Brass Nuts for Plastic Injection Moulding Through Hole Threaded Description

The raw materials for manufacturing brass nuts are commonly include H59 and H62.The injection molded brass nuts are widely used in numerous industries such as mobile phones, laptops, plastic casing manufacturing, telecommunications, micro motors, computers, electrical appliances, electronic devices, toys, watches, lighting, and motorcycles. Currently, the market offers a rich variety of product types, including CNC machined components, mobile phone nuts, embossed nuts, hot-melt nuts, hot-pressed nuts, embedded nuts, ultrasonic nuts, injection nuts, and insert nuts, totaling over twenty categories with specifications in the thousands.Want brass bolts and nuts sets.Please click here. Bespoke parts can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.

Our Non-standard Brass Parts Display

customize non standard brass nuts

Brass Nuts Raw Materials We use:

brass nuts materials we use

Our Injection Moulding Brass Nuts Size Chart(Blind Hole is available)

M2*Length* Exterior Diameter M2*2*3.5 M2*3*3.5 M2*4*3.5 M2*5*3.5
M2*6*3.5 M2*8*3.5
m2.5*Length* Exterior Diameter M2.5*3*3.5 M2.5*4*3.5 M2.5*5*3.5 M2.5*6*3.5
M2.5*8*3.5 M2.5*10*3.5
M3*Length* Exterior Diameter M3*3*4.1 M3*3*4.1 M3*3*4.1 M3*3*4.1
M3*7*4.1 M3*8*4.1 M3*10*4.1 M3*12*4.1
M3*3*5.0 M3*4*5.0 M3*5*5.0 M3*6*5.0
M3*7*5.0 M3*8*5.0 M3*10*5.0
M4*Length* Exterior Diameter M4*4*5.1 M4*5*5.1 M4*6*5.1 M4*7*5.1
M4*8*5.1 M4*10*5.1 M4*12*5.1
M4*3*6.0 M4*4*6.0 M4*5*6.0 M4*6*6.0
M4*8*6.0 M4*10*6.0
M4*7*6.3 M4*9*6.3 M4*12*6.3 M4*14*6.3
M4*16*6.3 M4*18*6.3 M4*20*6.3
M4*4*7.0 M4*5*7.0 M4*6*7.0 M4*7*7.0
M4*8*7.0 M4*10*7.0 M4*12*7.0
M4*5*8.0 M4*6*8.0  M4*8*8.0  M4*10*8.0
 M4*12*8.0
M5*Length* Exterior Diameter M5*5*6.3 M5*6*6.3 M5*7*6.3 M5*8*6.3
M5*9*6.3 M5*10*6.3
M5*5*7.3 M5*6*7.3 M5*7*7.3 M5*8*7.3
M5*9*7.3 M5*10*7.3 M5*12*7.3 M5*14*7.3
M5*16*7.3 M5*18*7.3 M5*20*7.3
M5*6*8.0 M5*8*8.0 M5*9*8.0 M5*10*8.0
M5*12*8.0
M6*Length* Exterior Diameter M6*6.5*8.0
M6*6*8.3 M6*7*8.3 M6*8*8.3 M6*10*8.3
M6*12*8.3 M6*14*8.3 M6*16*8.3 M6*18*8.3
M6*20*8.3
M6*6*10 M6*8*10 M6*10*10 M6*12*10
M6*14*10 M6*16*10
M8*Length* Exterior Diameter M8*8*10.3 M8*10*10.3 M8*12*10.3 M8*14*10.3
M8*16*10.3 M8*18*10.3 M8*20*10.3
M8*8*12 M8*10*12 M8*12*12 M8*14*12
M8*16*12 M8*20*12
M10*Length* Exterior Diameter M10*10*12.3 M10*12*12.3 M10*14*12.3 M10*16*12.3
M10*18*12.3 M10*20*12.3
M10*10*14 M10*12*14 M10*14*14 M10*16*14
M10*18*14
If you have a question, require a unique solution or are looking for a fastener that is not listed, please contact us with your requirements.
