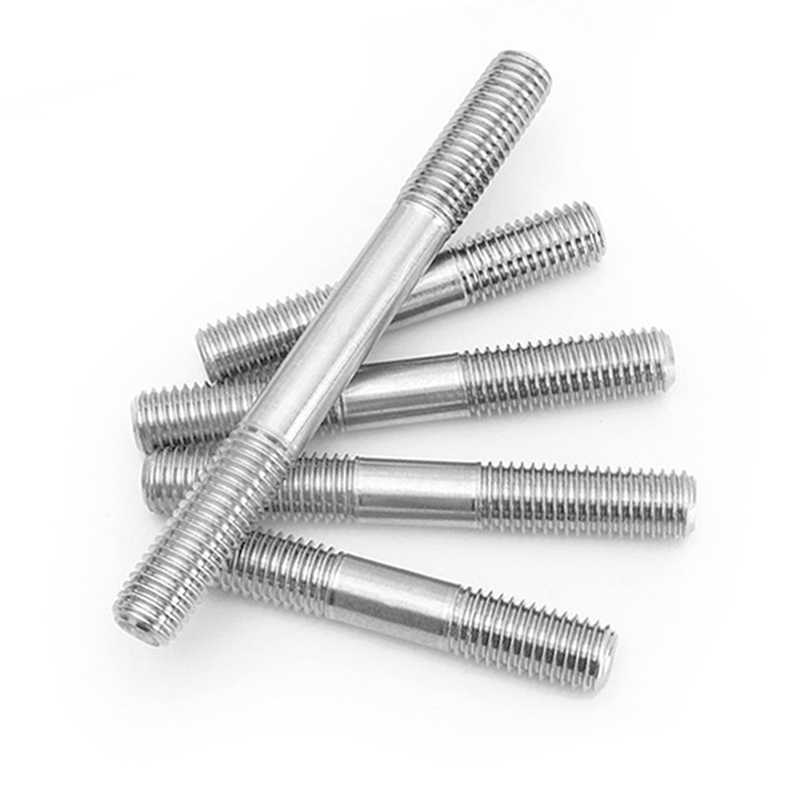

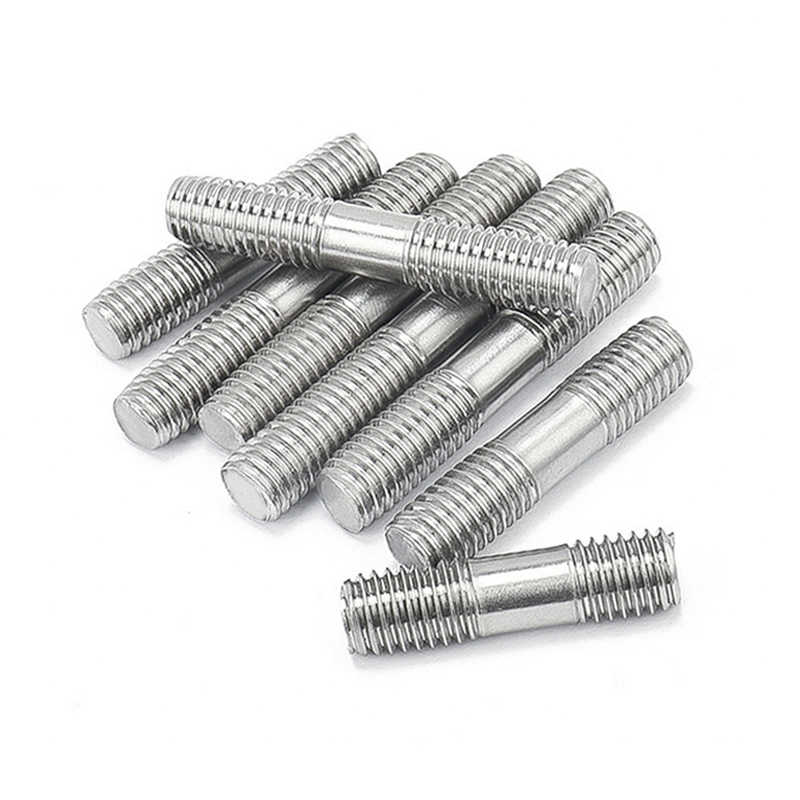

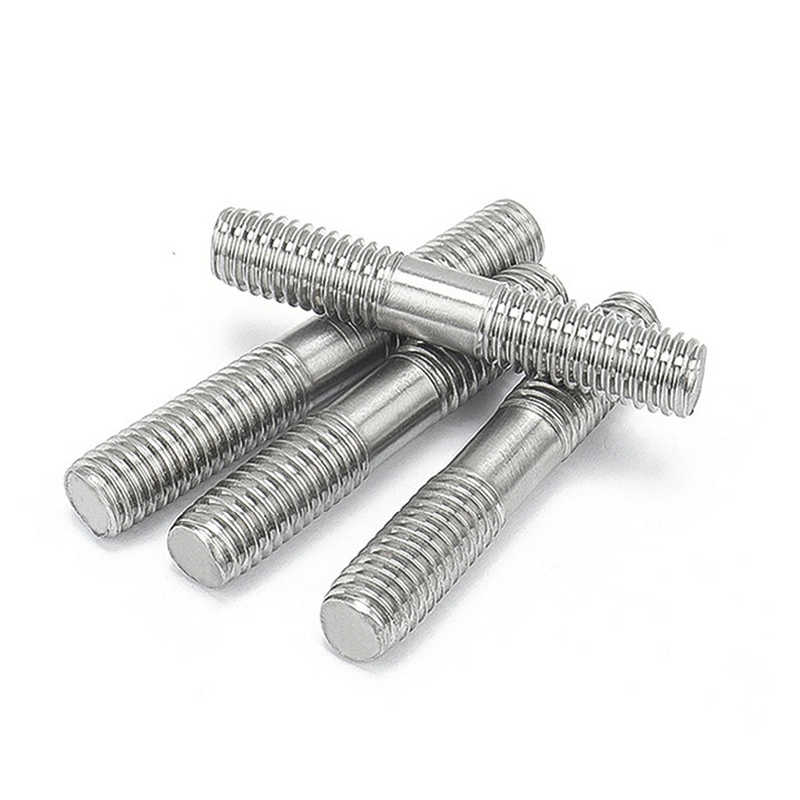

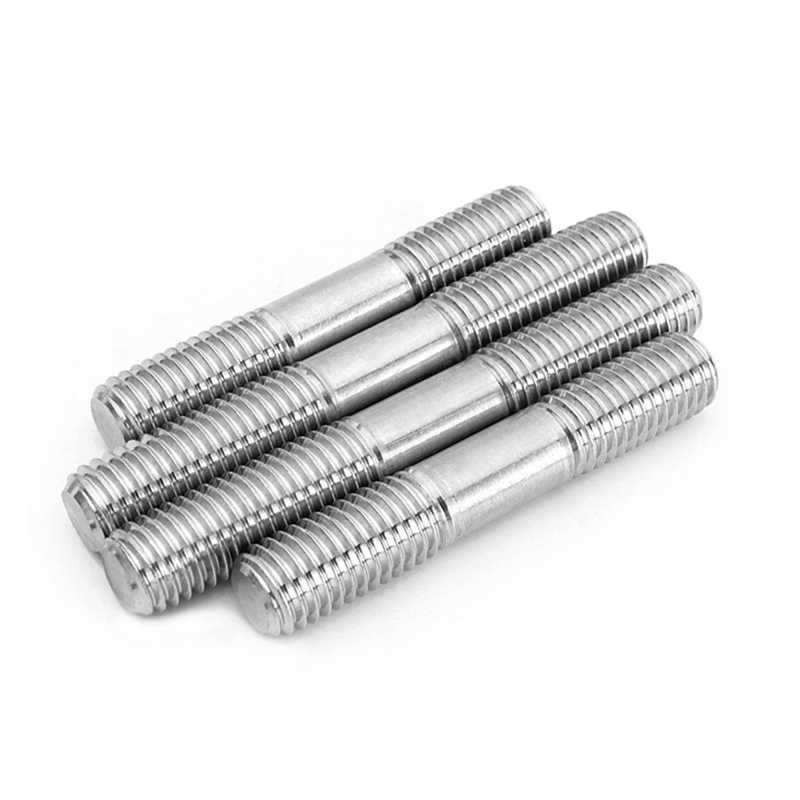

Stainless Steel Stud Bolts
Material: Stainless Steel
Grade:8.8,12.8
Standard:GB901
Size:M5-M80(Other sizes, please inquiry us)
Stainless Steel Stud Bolts Description
A stud bolt specifically refers to a larger-diameter, headless bolts. The most common form of a stud bolt features threads at both ends and a smooth, unthreaded shank in the middle. Its typical applications include anchor bolts, locations similar to where anchor bolts are used, or in thick connections where standard bolts cannot be effectively used.
At FastenMetal, we stock a variety of Stainless Steel Stud Bolts.Our stud bolts and nuts featuring various materials and finishes. These include high-strength alloy steel with black or zinc plating, different grades of stainless steel, and other specialized materials. We are expert bolts and nuts manufacturers serviced with custom options.Email us printings!
Our Stainless Steel Stud Bolts Size Chart
| Unit:mm | ||||||
| Specification(d) | M8 | M10 | M12 | M14 | M16 | M18 |
| b | 28 | 32 | 36 | 40 | 44 | 48 |
| x max | 1.5P | |||||
| L | 32–300 | 40–300 | 50–300 | 60–300 | 60–300 | 60–300 |
| Unit:mm | ||||||
| Specification(d) | M20 | M22 | M24 | M27 | M30 | M33 |
| b | 52 | 56 | 60 | 66 | 72 | 78 |
| x max | 1.5P | |||||
| L | 70–300 | 80–300 | 90–300 | 100–300 | 140–400 | 140–400 |
| Unit:mm | ||||||
| Specification(d) | M36 | M39 | M42 | M48 | M56 | |
| b | 89 | 60 | 96 | 108 | 124 | |
| x max | 1.5P | |||||
| L | 140–400 | 140–500 | 140–500 | 150–500 | 190–500 | |
| Size not Listed? Please inquiry us! | ||||||
Shipping and Payment Terms:
- We generally ship cargos worldwide by sea. The goods will be in a shipping container when arriving at the port. You are responsible for picking up your shipment and customs clearance on your side.
- We do accept small, urgent orders that need to be shipped by air.
- We currently accept T/T & L/C.
- Please contact us if you have any questions about shipping or payment, we will be happy to assist you
