Trusted by Over 1000 Customers All Over the World
Trusted by Over 1000 Customers All Over the World
Brass Cap nuts, as the name suggests, are hexagonal nuts with a cover. The purpose of this cover is to secure the exposed outer part, preventing moisture and other corrosive substances from entering, thereby providing rust protection. This helps to extend both the lifespan of the cap nut itself and the connected components.Made from brass, they provide a decorative finish while also protecting the threaded end from dirt and damage.
Material:H65 ,H59
Standard:GB
Payment Term:TT OR LC AT SIGHT
Delivery Term:FOB,CNF,CIF,EXW
MOQ:1000pcs

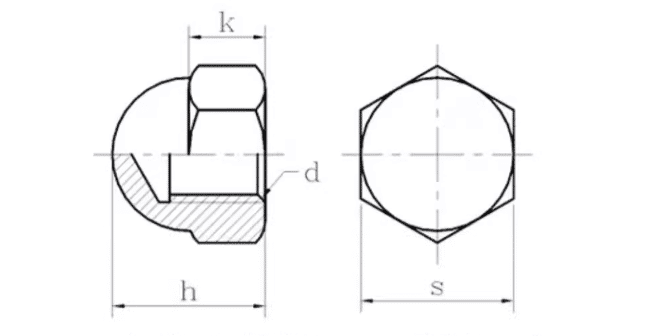

| D | P | H | M | S | |
| / | / | max | min | ||
| M3 | 0.5 | 2.5 | 6 | 5.5 | 5.32 |
| M4 | 0.7 | 3 | 7 | 7 | 6.78 |
| M5 | 0.7 | 4 | 9 | 8 | 7.78 |
| M6 | 1 | 5 | 11 | 10 | 9.78 |
| M8 | 1/1.25 | 6 | 15 | 13 | 9.78 |
| M10 | 1/1.25/1.5 | 8 | 18 | 17 | 12.73 |
| M12 | 1.25.1.5/1.75 | 10 | 22 | 19 | 16.73 |
| M14 | 1.5/2 | 11 | 24 | 22 | 18.7 |
| M16 | 1.5/2 | 13 | 26 | 24 | 21.67 |
| M18 | 1.5/2/2.5 | 14 | 29 | 27 | 26.16 |
| M20 | 1.5/2/2.5 | 16 | 32 | 30 | 29.16 |
| M22 | 1.5/2/2.5 | 18 | 35 | 34 | 33 |
Brass hex nylon lock nuts are specialized fasteners made from brass, featuring a nylon insert, which helps prevent loosening by gripping the bolt threads securely. These nuts are known for their corrosion resistance, electrical conductivity, and durability, making them ideal for applications in electronics, plumbing, and environments where both vibration resistance and non-corrosive properties are needed.For quotes,inquiries,or made to order request, please feel free to click the button”get a free quote”.
Material: H59 and H62 brass
Standard:GB
Finish: As finished
Size:M3-M48
Strength Grade:Grade4.8,6.8,8.8,10.9.12.8
Brass flanged nuts are fasteners made from brass, featuring a built-in flange that provides additional stability and load distribution. The flange helps prevent damage to connected surfaces and ensures a secure fit when paired with bolts or screws. Known for their corrosion resistance and aesthetic appeal, these nuts are commonly used in electrical, plumbing, and general engineering applications.
Material: Stainless Steel
Standard:DIN
Finish: As finished
Size:M3-M12
MOQ:1000pcs
Brass nuts for trapezoidal threaded rods are specialized fasteners designed to fit onto trapezoidal threads, which have a specific angled profile that provides a greater load-bearing capacity and efficiency in linear motion applications.
Material:H65 ,H59
Standard:GB
Payment Term:TT OR LC AT SIGHT
Delivery Term:FOB,CNF,CIF,EXW
MOQ:1000pcs
Brass half nuts are brass fasteners designed with a reduced thickness, making them ideal for applications where space is limited. Their slim profile allows for easy installation in tight spots, while the brass material offers excellent corrosion resistance and durability. These nuts are commonly used in electronics, automotive applications, and machinery, providing secure connections without adding excessive weight. Their design is particularly useful in assembly situations that require a low-profile solution.
Material:H65 ,H59
Standard:GB
Payment Term:TT OR LC AT SIGHT
Delivery Term:FOB,CNF,CIF,EXW
MOQ:1000pcs
