Titanium lock nuts are flange nuts made from titanium that feature a locking mechanism to prevent loosening due to vibrations or dynamic loads.Titanium is a high-strength, high-hardness material, so machining titanium flange nuts is more difficult than machining stainless steel flange nuts.Bespoke parts can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.
Material: titanium
Standard:DIN
Finish: anodizing
Size:M4-M24
MOQ:300pcs

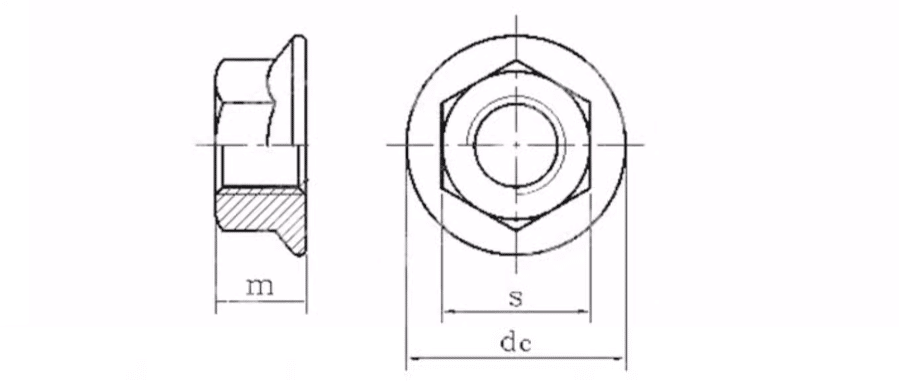

| unit:mm | ||||||||||
| Specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| P(thread distance) | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| DC | 7.8 | 9.8 | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
| S | 5.5 | 7 | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
| M | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| Not listed in the table? Please email us to inquiry. | ||||||||||
Material: Titanium
Standard:GB
Finish: Color plated
Size:M5-M16
Strength Grade:Grade8.8,10.9.12.8
Washer nuts with a large flange are special fasteners that combine the features of a nut and a washer. The large flange increases the surface area for load distribution, which helps prevent damage to the material being fastened and reduces the risk of loosening. They’re often used in applications requiring extra support, such as in wood or soft materials.Bespoke nuts can be manufactured to order in non-standard sizes and specialist material grades – minimum order quantities apply.
Material: Stainless Steel
Standard:DIN
Finish: As finished
Size:M3-M20
Strength Grade:Grade8.8,10.9.12.8
Brass flanged nuts are fasteners made from brass, featuring a built-in flange that provides additional stability and load distribution. The flange helps prevent damage to connected surfaces and ensures a secure fit when paired with bolts or screws. Known for their corrosion resistance and aesthetic appeal, these nuts are commonly used in electrical, plumbing, and general engineering applications.
Material: Stainless Steel
Standard:DIN
Finish: As finished
Size:M3-M12
MOQ:1000pcs
A mold clamp flanged nut is a type of fastener used to secure and connect mold components. It typically features internal threads and is used in conjunction with bolts or rods to provide fastening and connection. Mold clamp nuts play an important role in mold manufacturing and maintenance, ensuring that various parts of the mold are securely connected, which in turn guarantees the normal operation of the mold and the quality of the products.
Material: Stainless Steel,Carbon Steel
Standard:DIN
Finish: As finished
Size:M8-M24
Strength Grade:Grade8.8,10.9.12.8
MOQ:1000pcs
